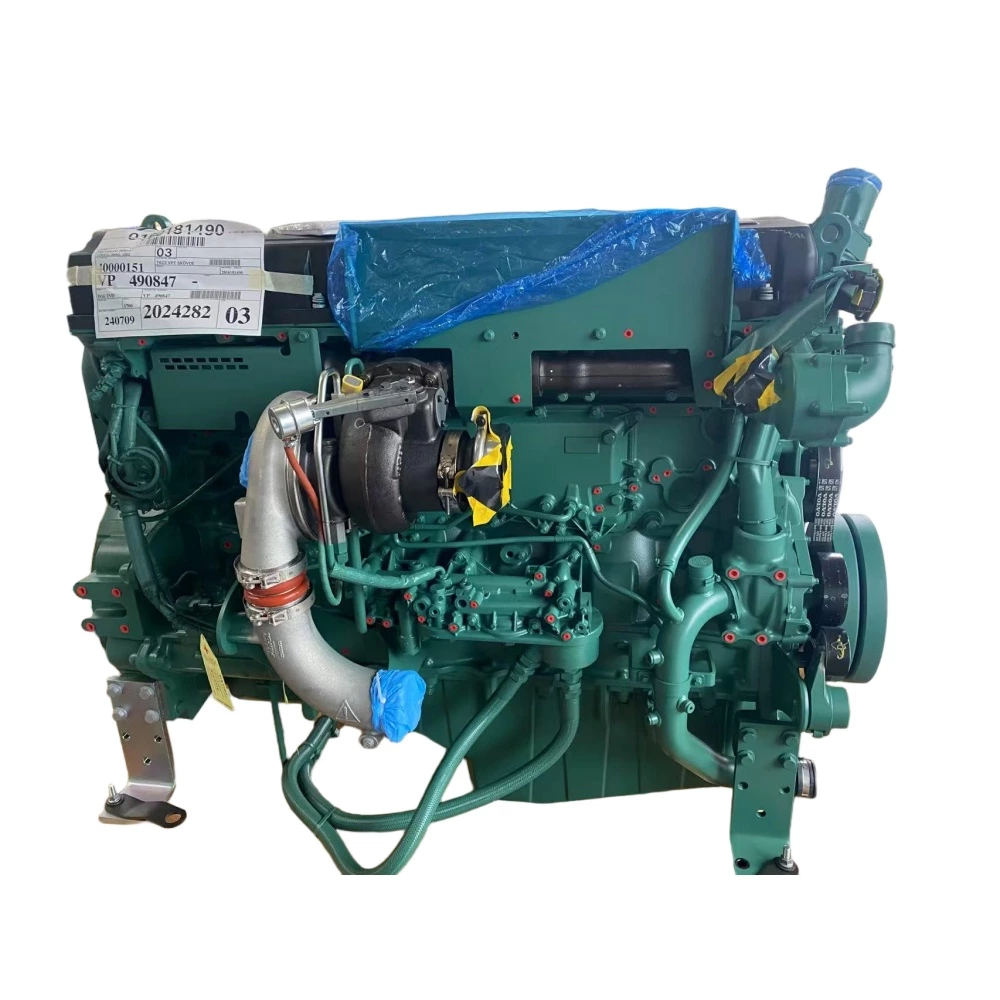

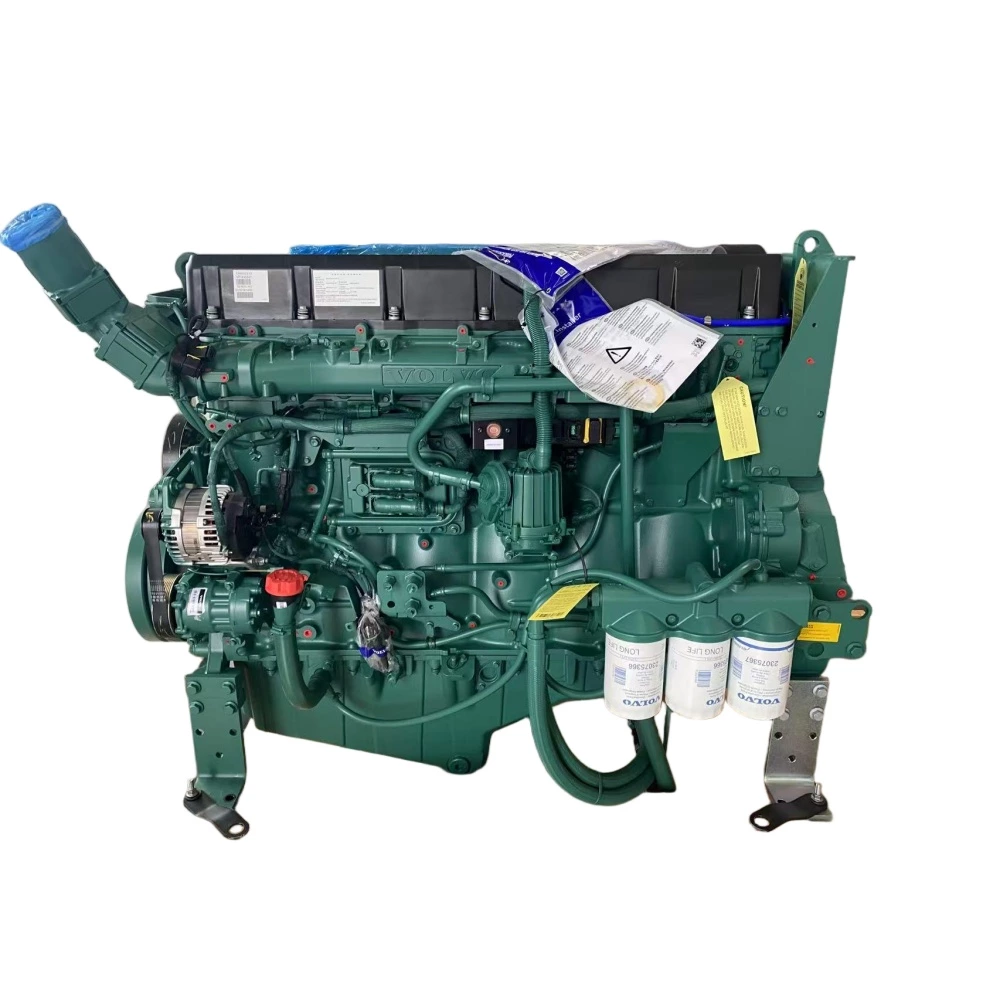

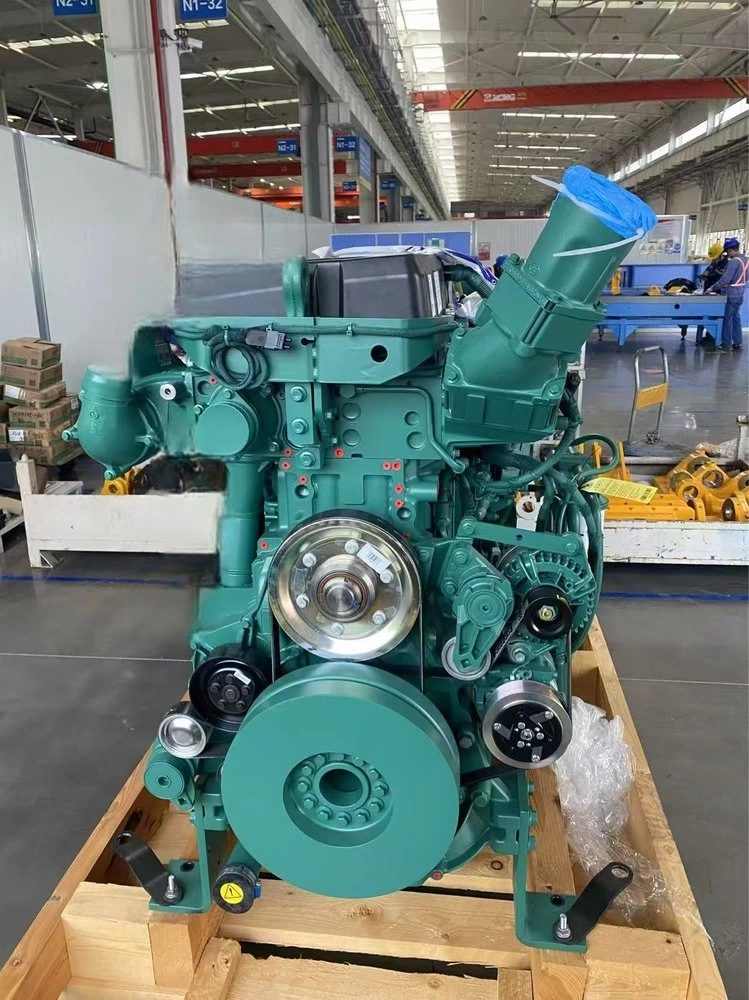

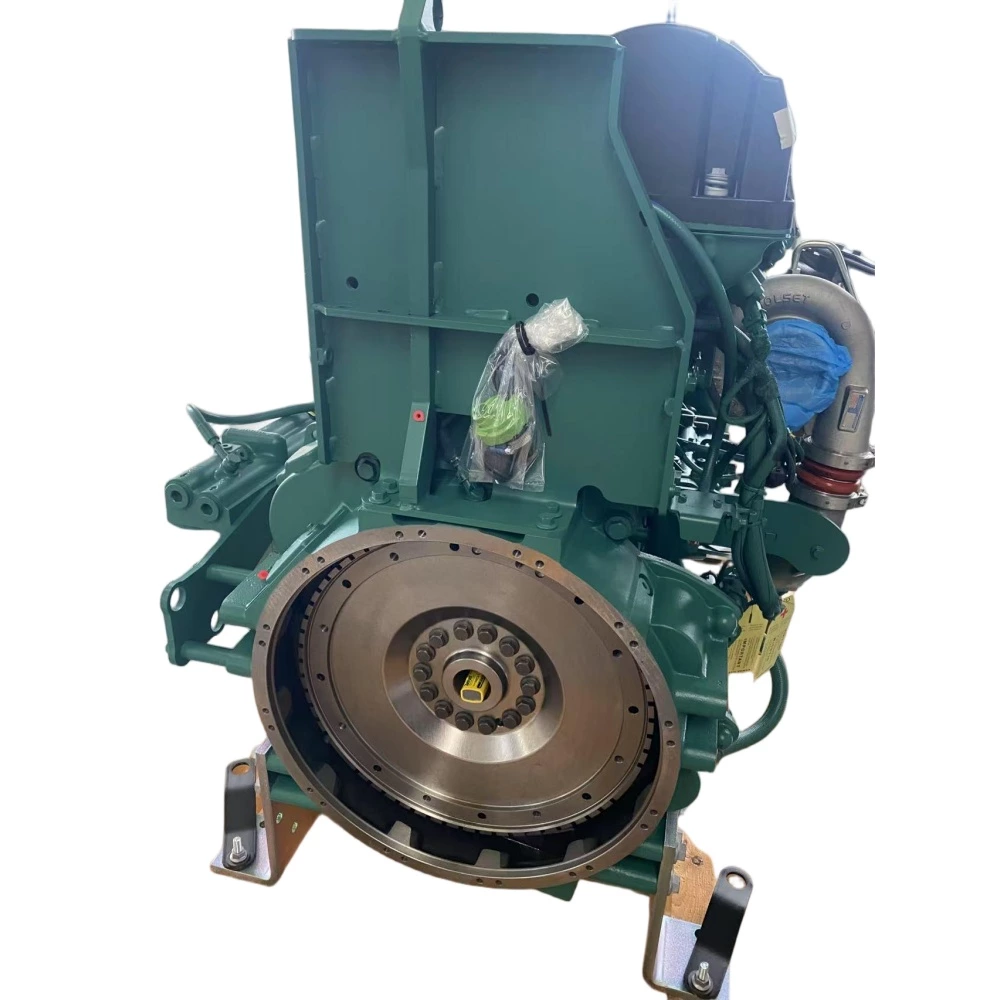

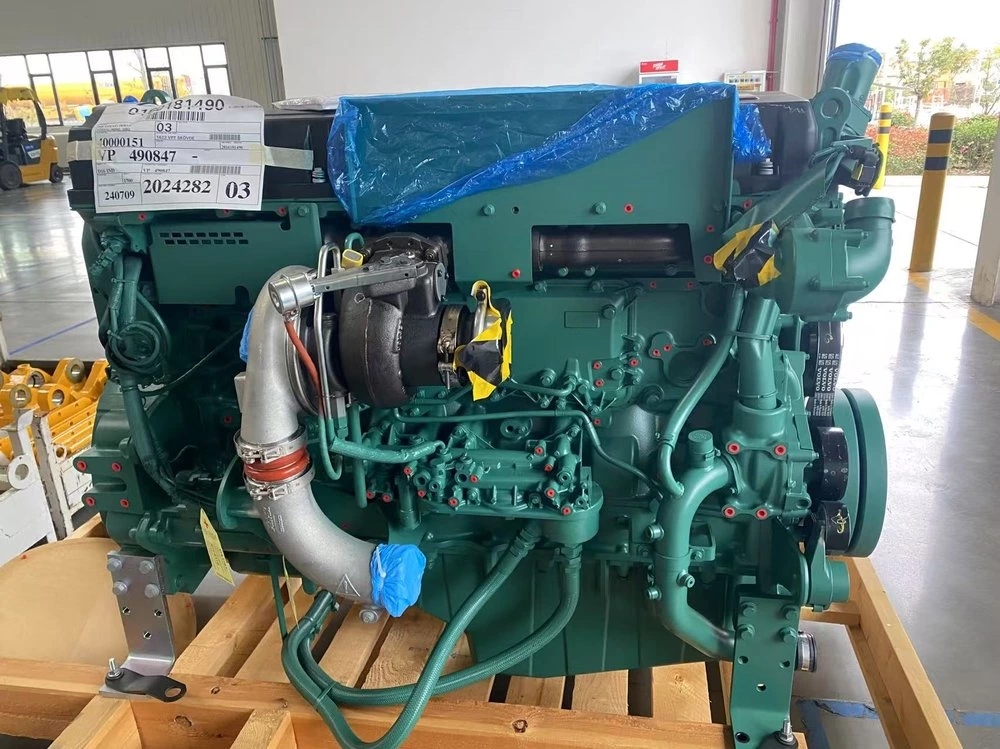

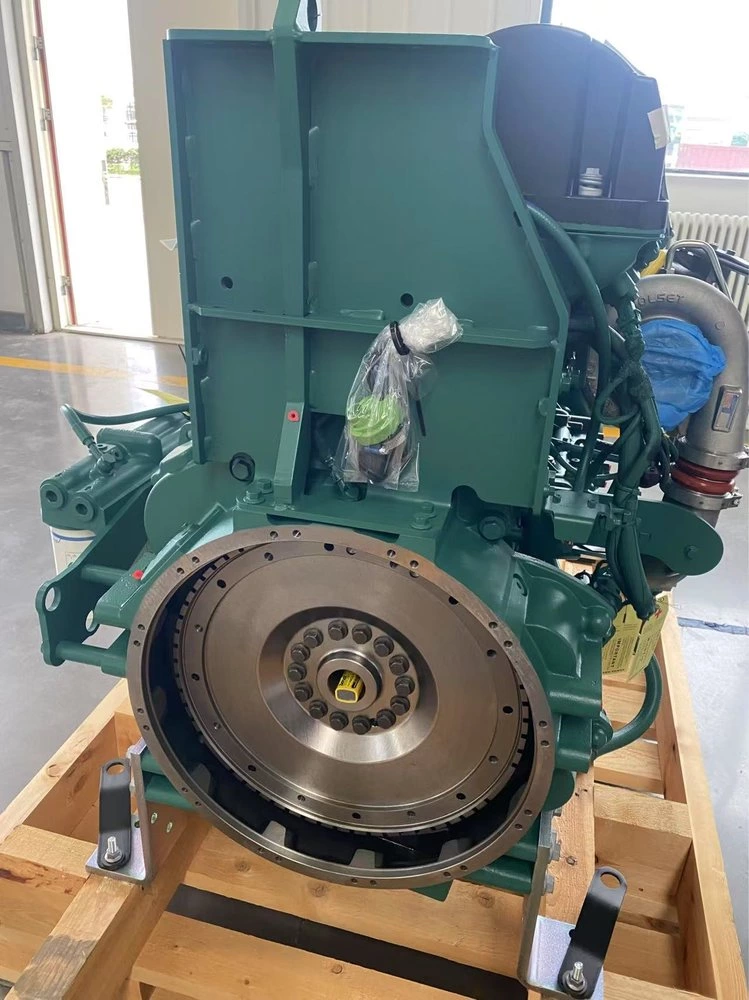

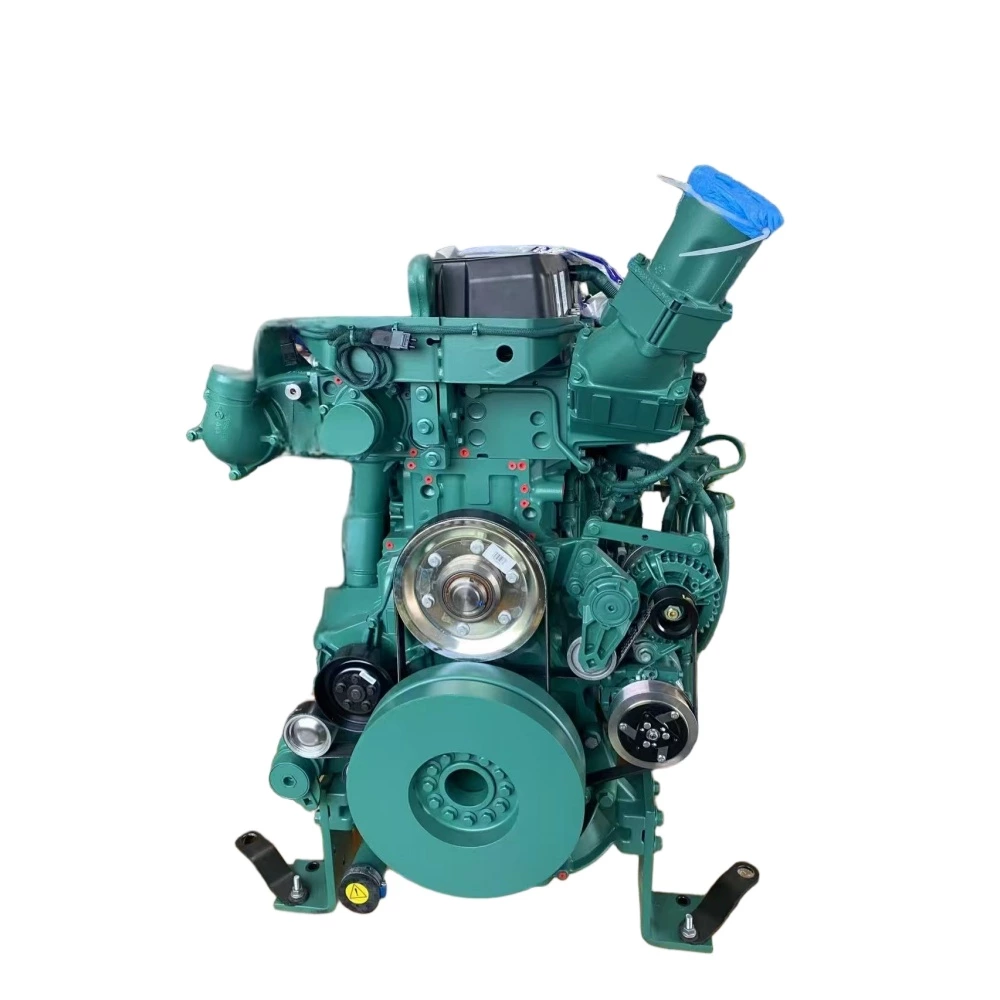

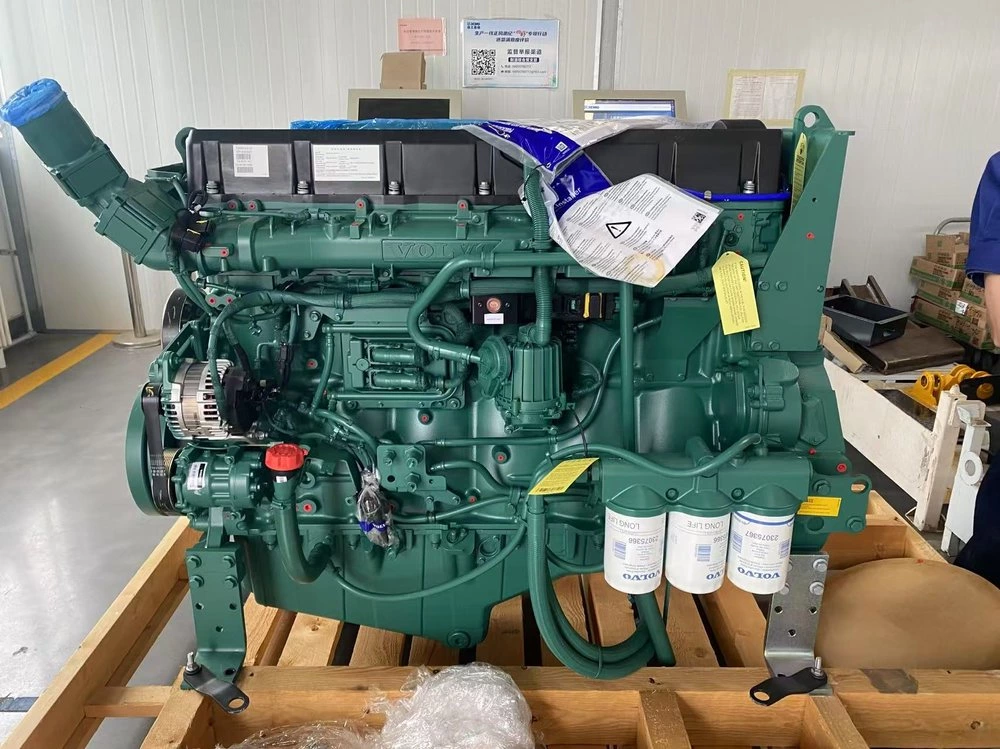

Volvo Penta TAD1643VE-B Complete Diesel Engine

Volvo Penta TAD1643VE-B is inline six-cylinder, water-cooled four-stroke diesel engine. Displacement 16.1L, bore × stroke:154 mm × 185 mm, compression ratio 17.5:1. Equipped with turbocharger and air-to-air intercooler, high-pressure common rail injection system, matched upgraded Volvo EMS2.3 electronic engine management system.

Robust reinforced cast iron cylinder block, wet replaceable cylinder liner design, convenient single-cylinder maintenance. Broad flat torque curve, strong overload capacity, suitable for variable heavy-load working conditions. Centralized service layout, easy filter replacement and daily inspection. Multiple optional auxiliary configurations, standard industrial installation interfaces, convenient to couple with alternators, large pump gearboxes and mining equipment. Available as complete engine assembly. Each unit undergoes bench hot test before delivery to guarantee stable power, reliable sealing and normal electronic system operation.

Main Matching Equipment

Heavy-duty stationary diesel generator sets

Large flood control & drainage pump units, industrial water supply pump stations

Mining machinery, large drilling rigs, mobile compressors

Off-road heavy engineering equipment

Product Advantages

Powerful Power & Excellent Load Response

• Rated power: 565 kW @1900 rpm; peak torque up to 3500 N·m @1200–1600 rpm.
• Electronically controlled wastegate turbocharger, stable boost pressure at low speed, sufficient power reserve.
• High-pressure common rail multi-stage injection system, optimize fuel consumption under full load range.

Robust Structure & Low Operation Cost

• Mature D16 heavy-duty platform, long-term verification under mining and continuous industrial working conditions.
• Patented Volvo engine brake, outstanding braking performance for mobile machinery.
• Extended service interval, complete global spare parts supply network, effectively reduce equipment downtime.

Wide Compatibility & Stable Electronic Control

• Volvo original EMS2.3 electronic control system, powerful self-diagnosis function, convenient fault troubleshooting.
• Adaptable for stationary power generation, pump units and mobile off-road equipment.
• Standard installation dimensions, support direct replacement for original engine without large modification.
