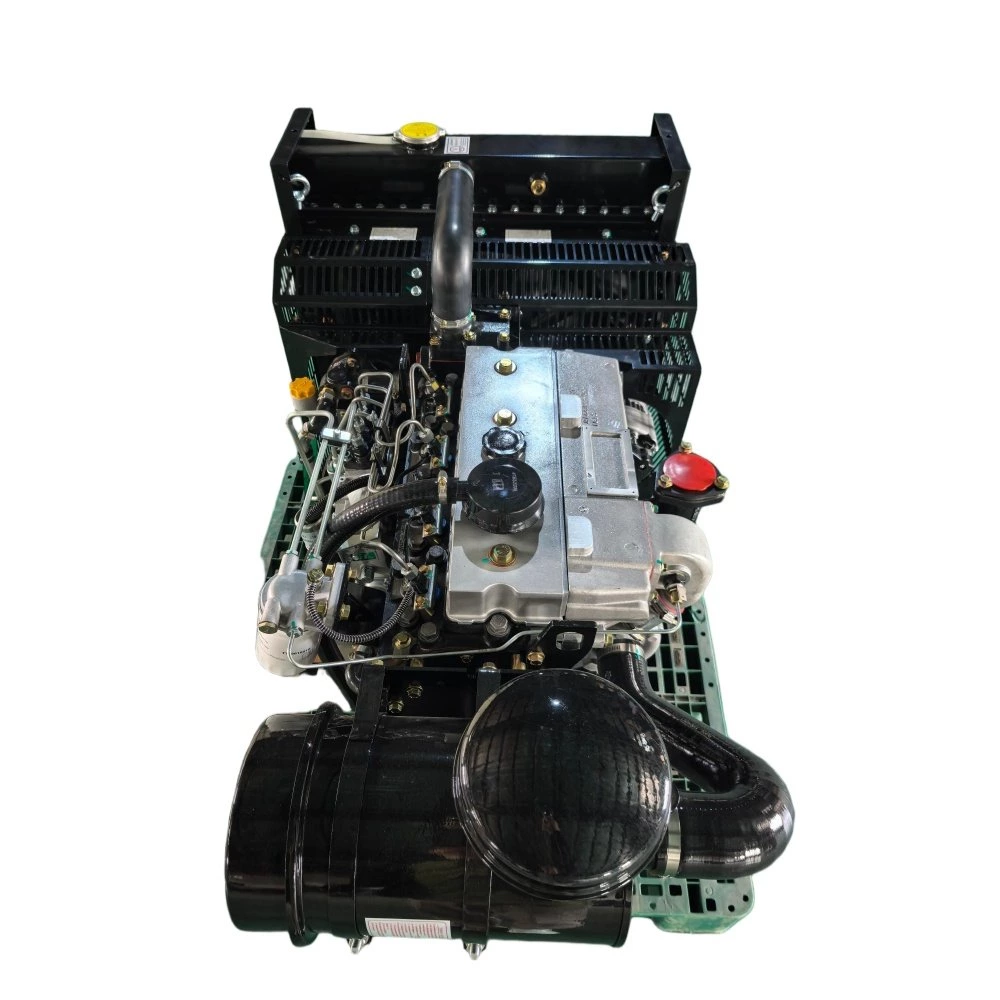

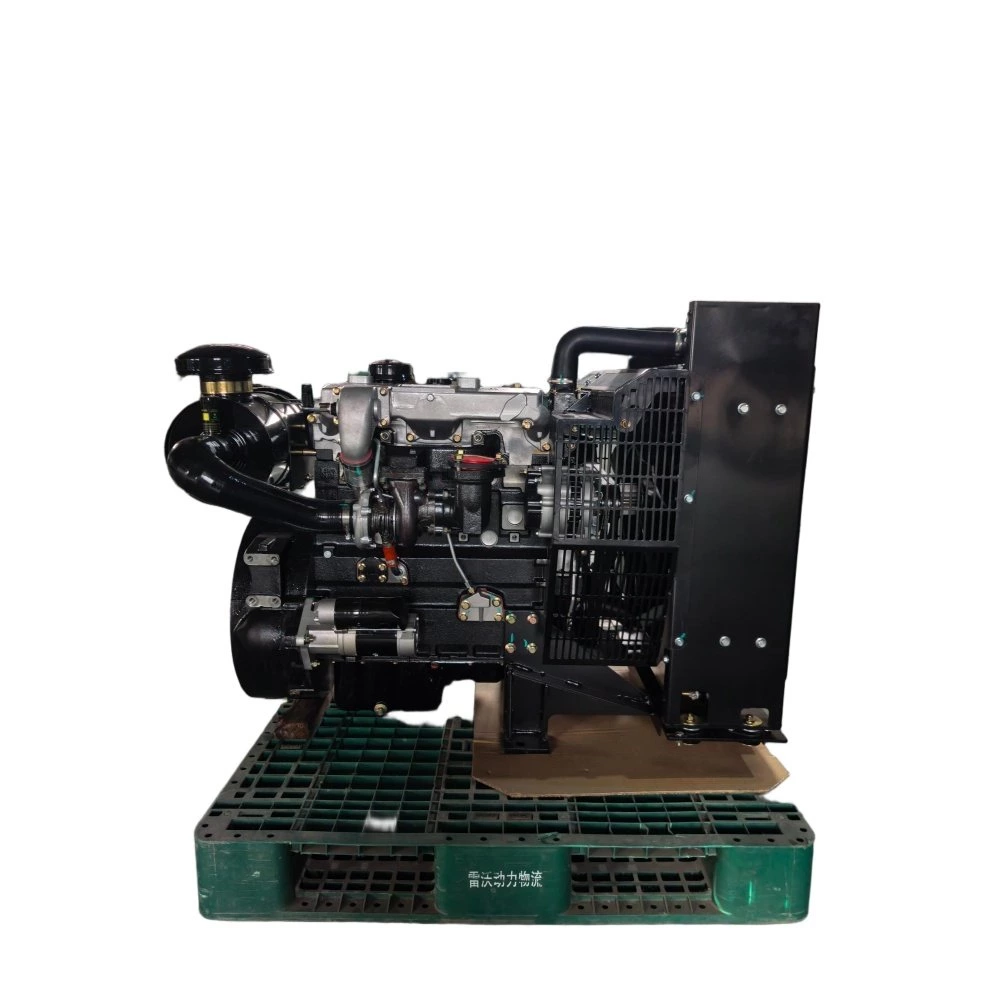

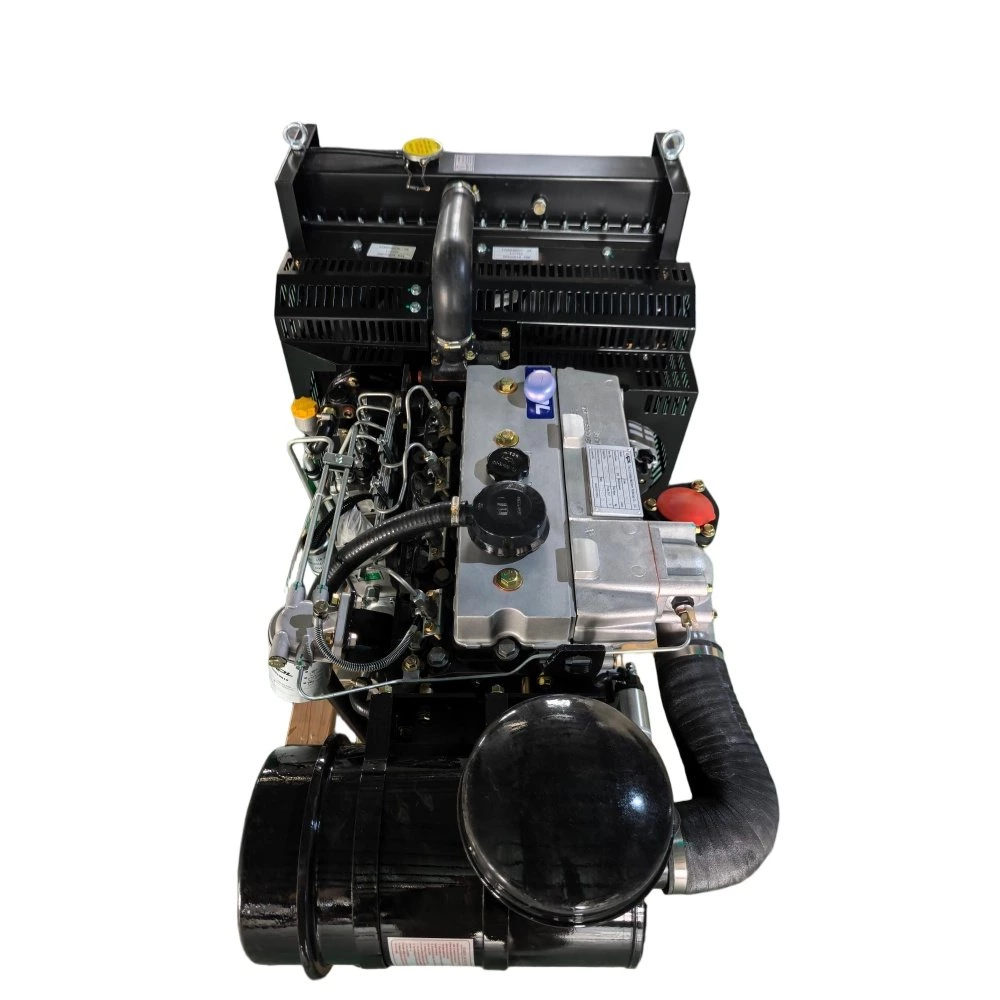

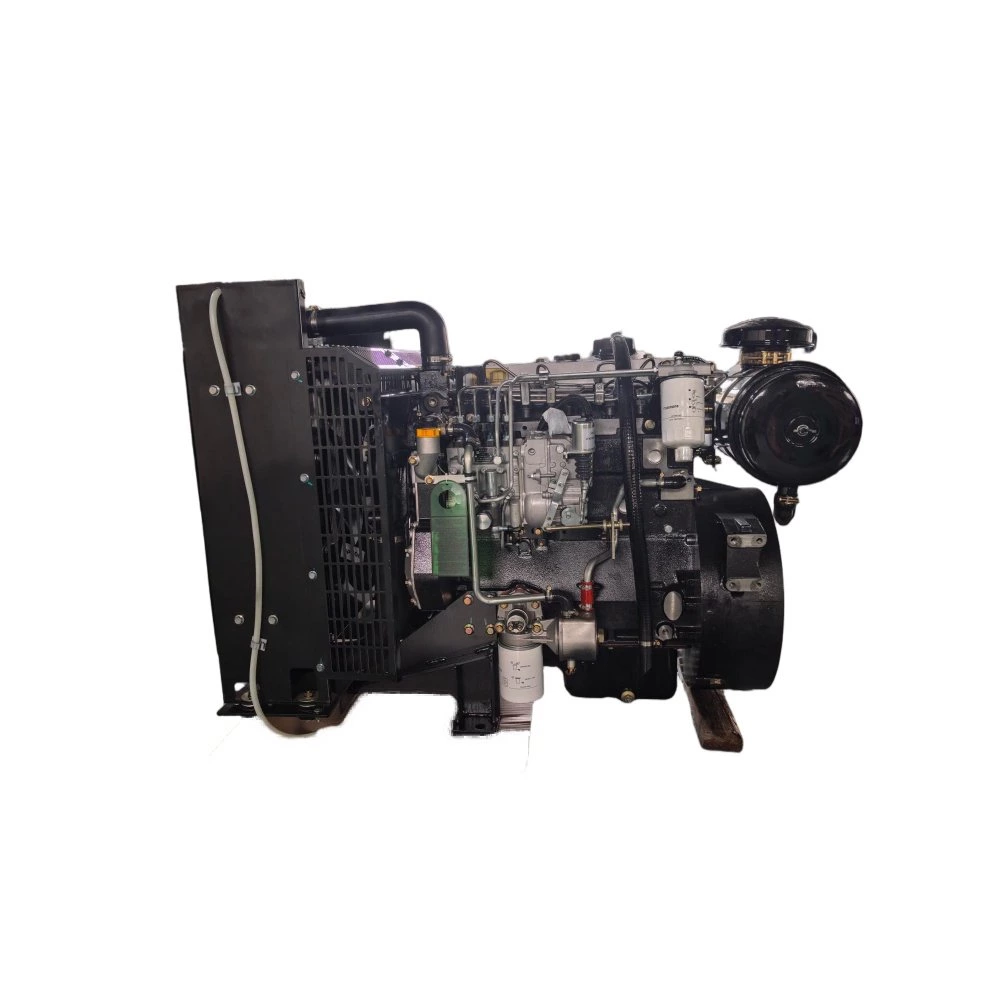

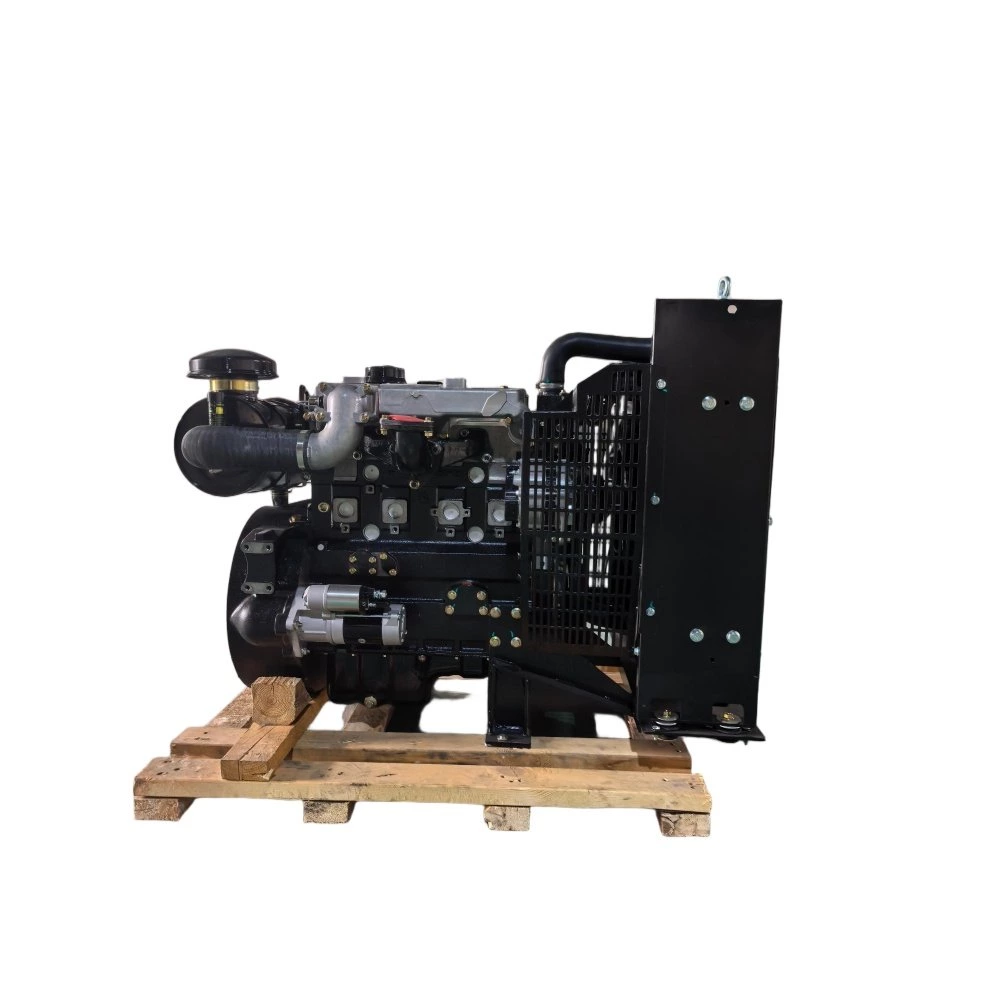

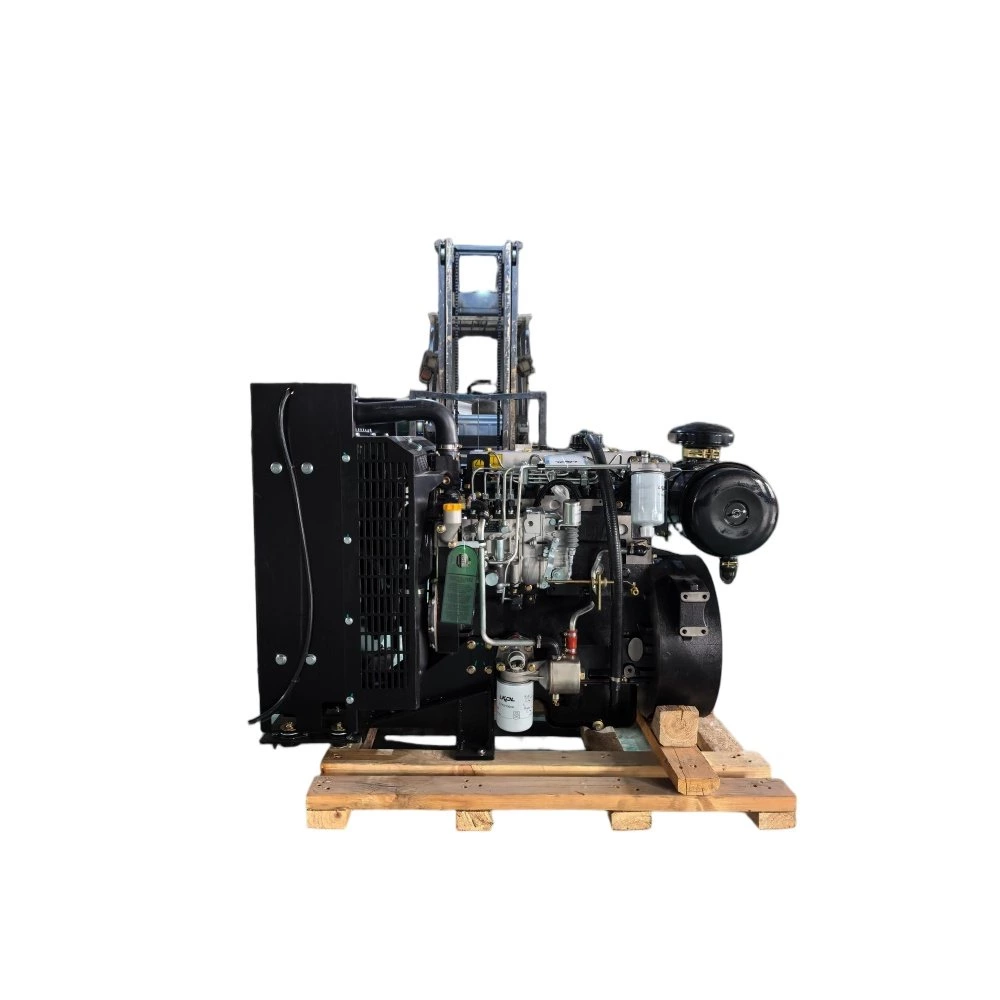

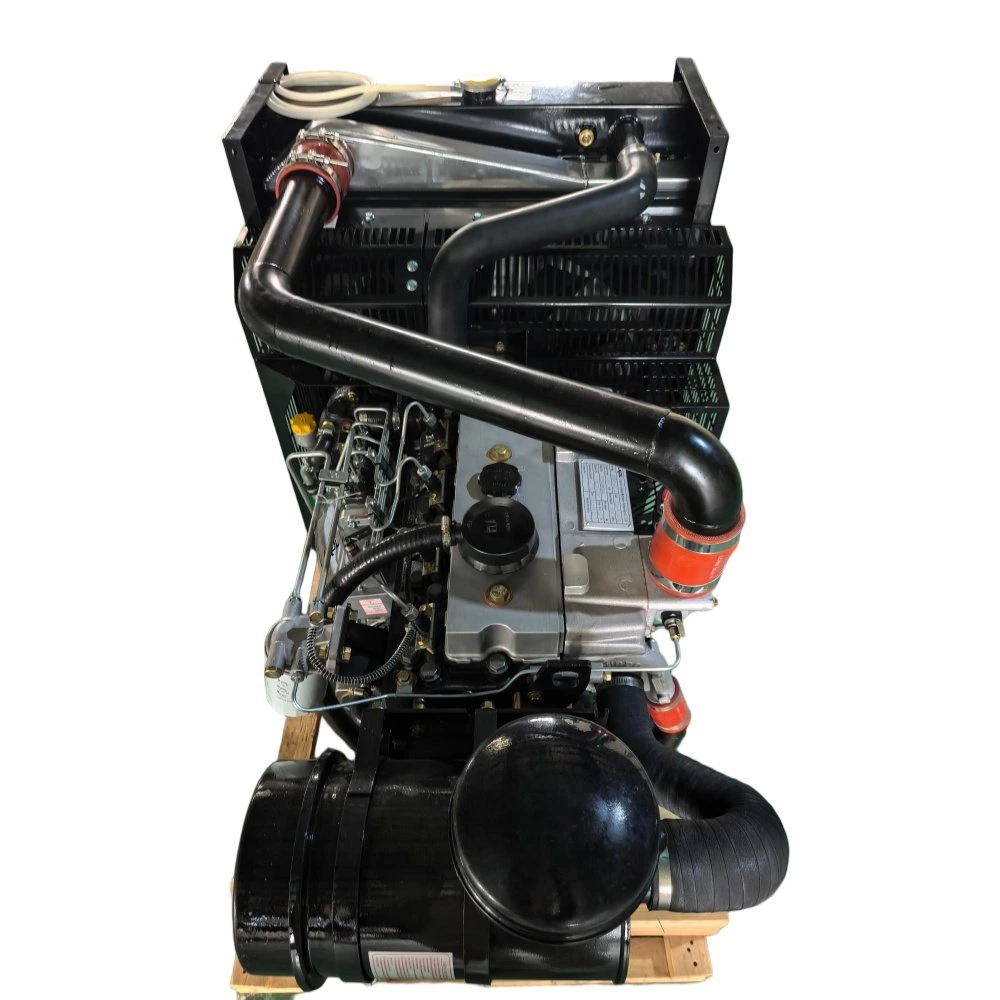

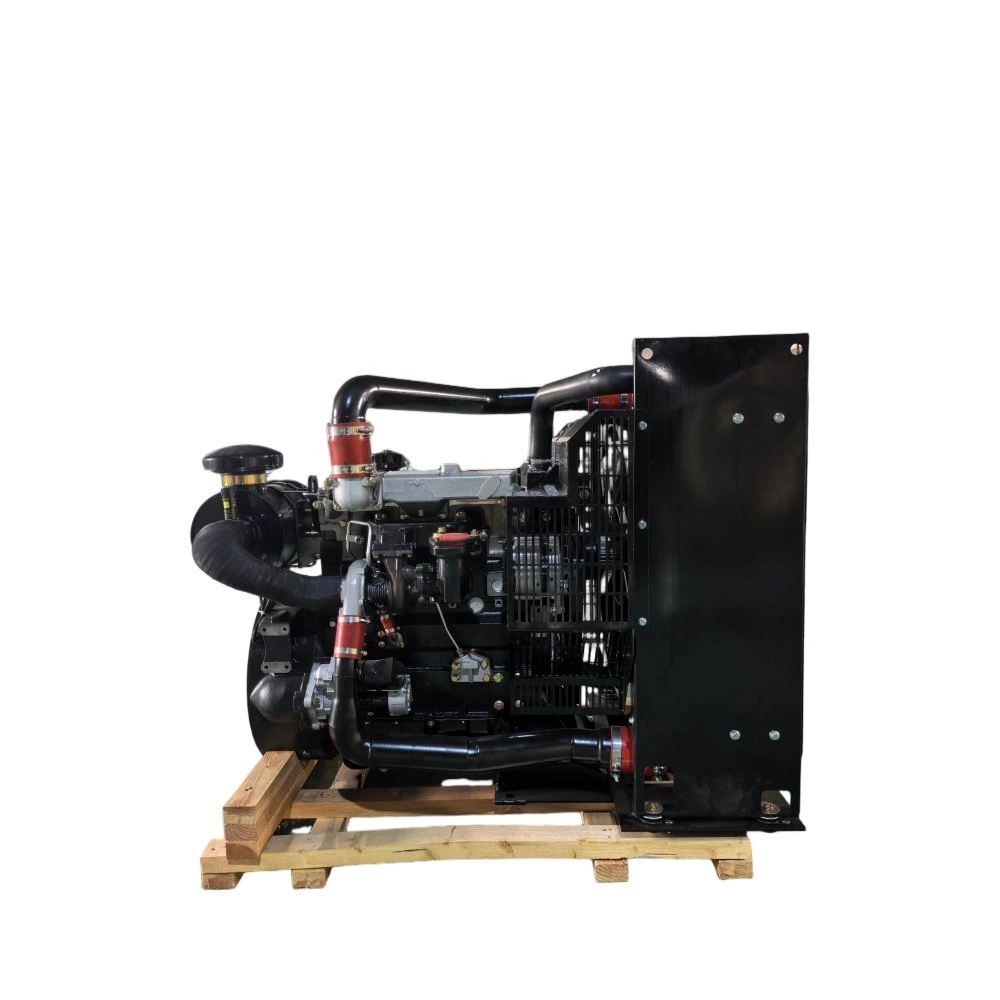

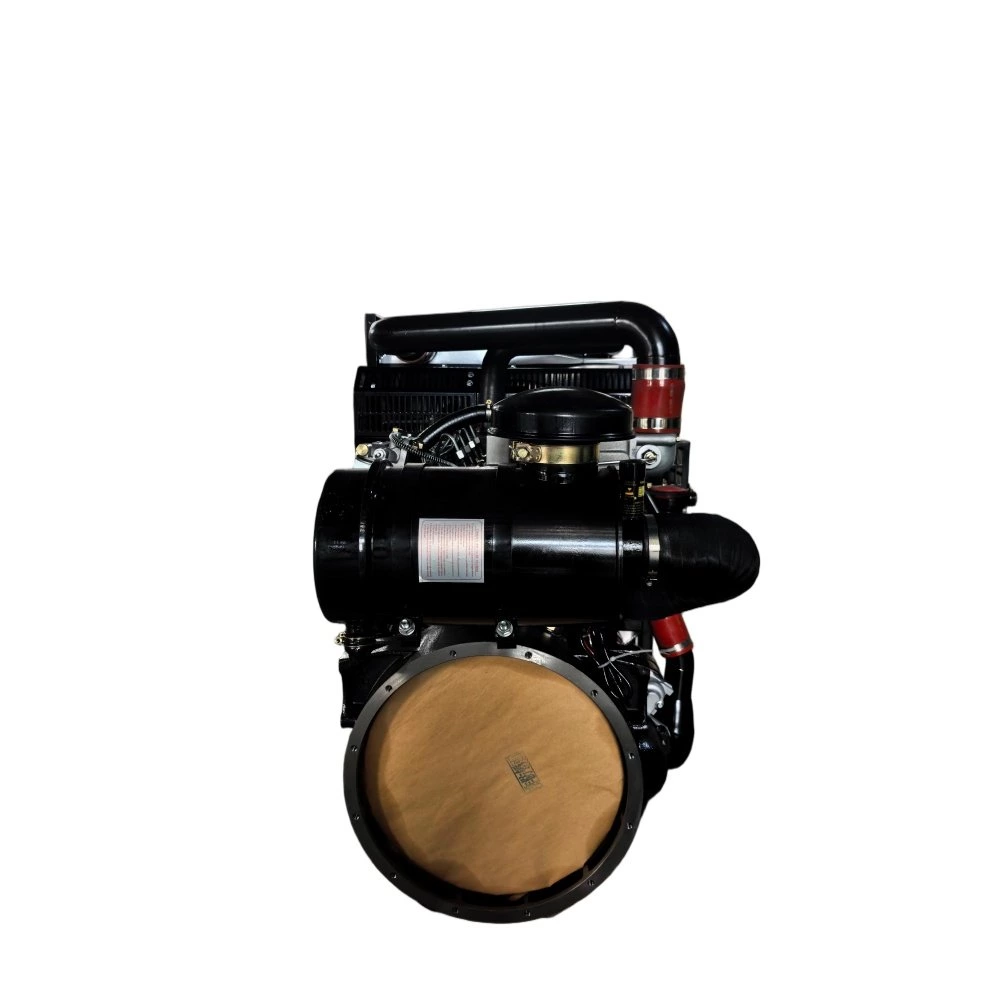

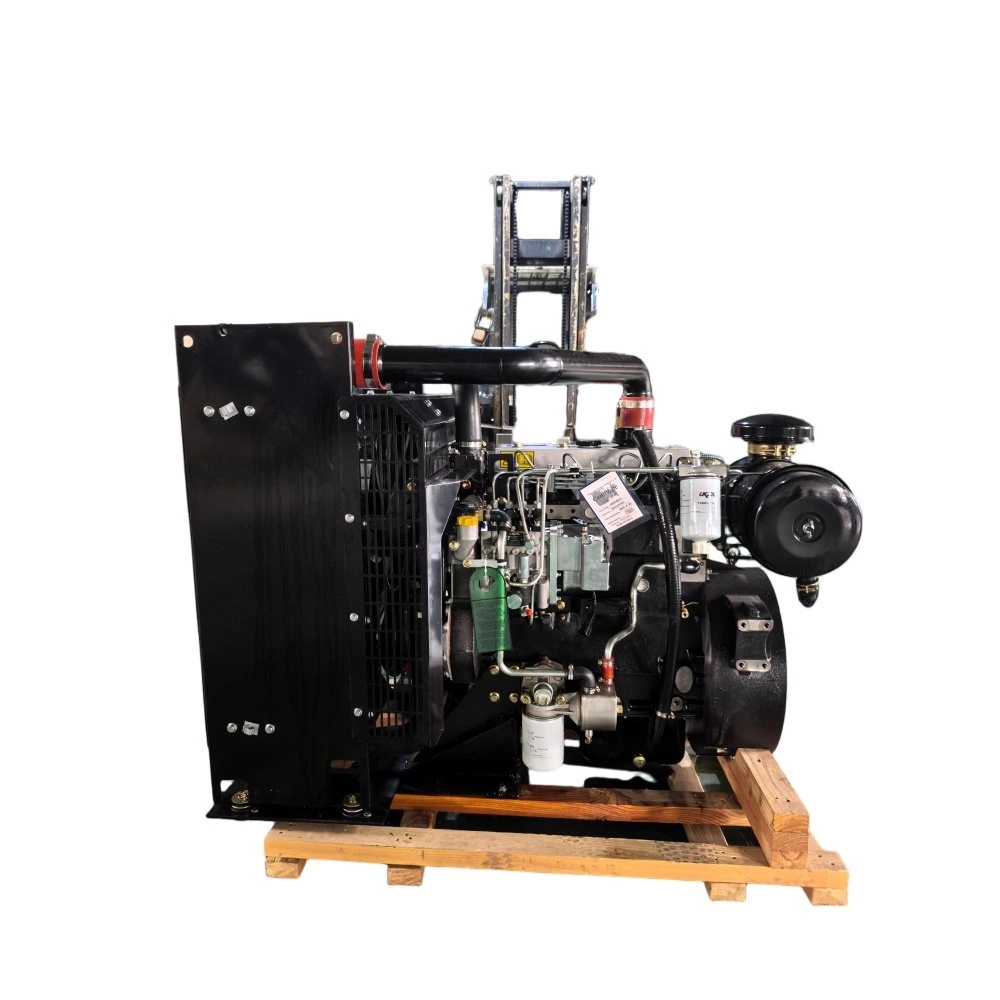

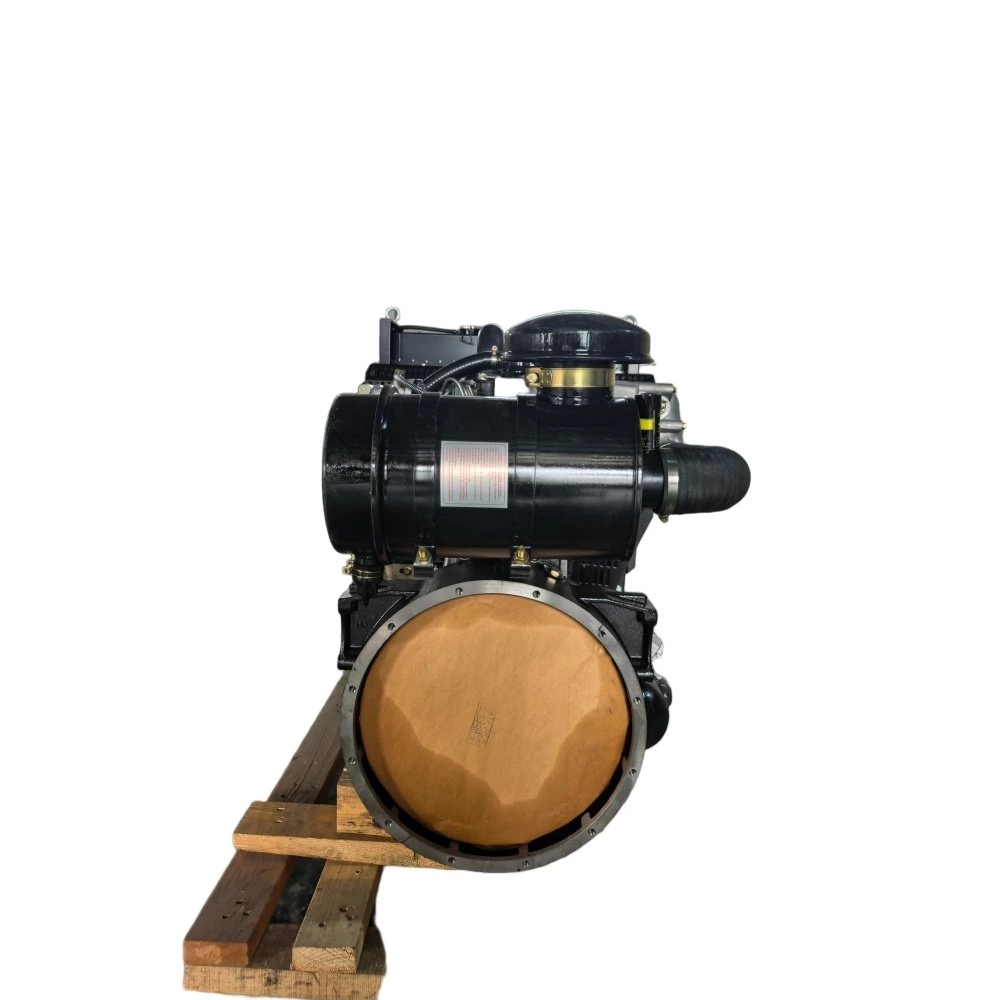

Perkins 1004G14 / 1004TG14 / 1004TAG14 Diesel Engine

Perkins 1004TAG14 is inline four-cylinder, water-cooled four-stroke direct injection diesel engine. Displacement 3.99L, bore × stroke:100 mm × 127 mm, Quadram spherical combustion chamber. Adopts turbocharged + air-to-air intercooled intake system, fitted with electronic governor, designed for fixed 1500 rpm constant-speed operation (50Hz power matching).

Electronic governor realizes high-precision speed control, small speed fluctuation during sudden load change. Air-to-air intercooler effectively lowers intake temperature, improves power density and reduces exhaust temperature. Single-side maintenance layout, convenient daily inspection and filter replacement. Standard SAE installation interfaces for generator and water pump transmission connection. Suitable for outdoor, dusty and long-time continuous working conditions. Available as complete engine assembly. Each unit passes bench hot test before delivery to guarantee steady speed, stable power output and reliable sealing performance.

Main Matching Equipment

85kW stationary diesel generator sets (50Hz)

40kW stationary diesel generator sets (50Hz)

65.7kW stationary diesel generator sets (50Hz)

Product Advantages

High-precision Constant-speed Performance

• Rated power: 85 kW @1500 rpm, stable continuous power output under constant load.
• Electronic governor, fast load response, small speed deviation, meet strict power generation requirements.
• Air-to-air intercooled design, higher charging efficiency, better power and fuel economy compared with naturally aspirated models.

High Durability & Convenient Maintenance

• Mature industrial power platform, long-term verified in generator and pump equipment applications.
• Optimized mechanical direct injection system, strong adaptability to different grades of diesel fuel.
• Single-side service layout, simple daily maintenance, effectively shorten equipment downtime.

Wide Industrial Matching

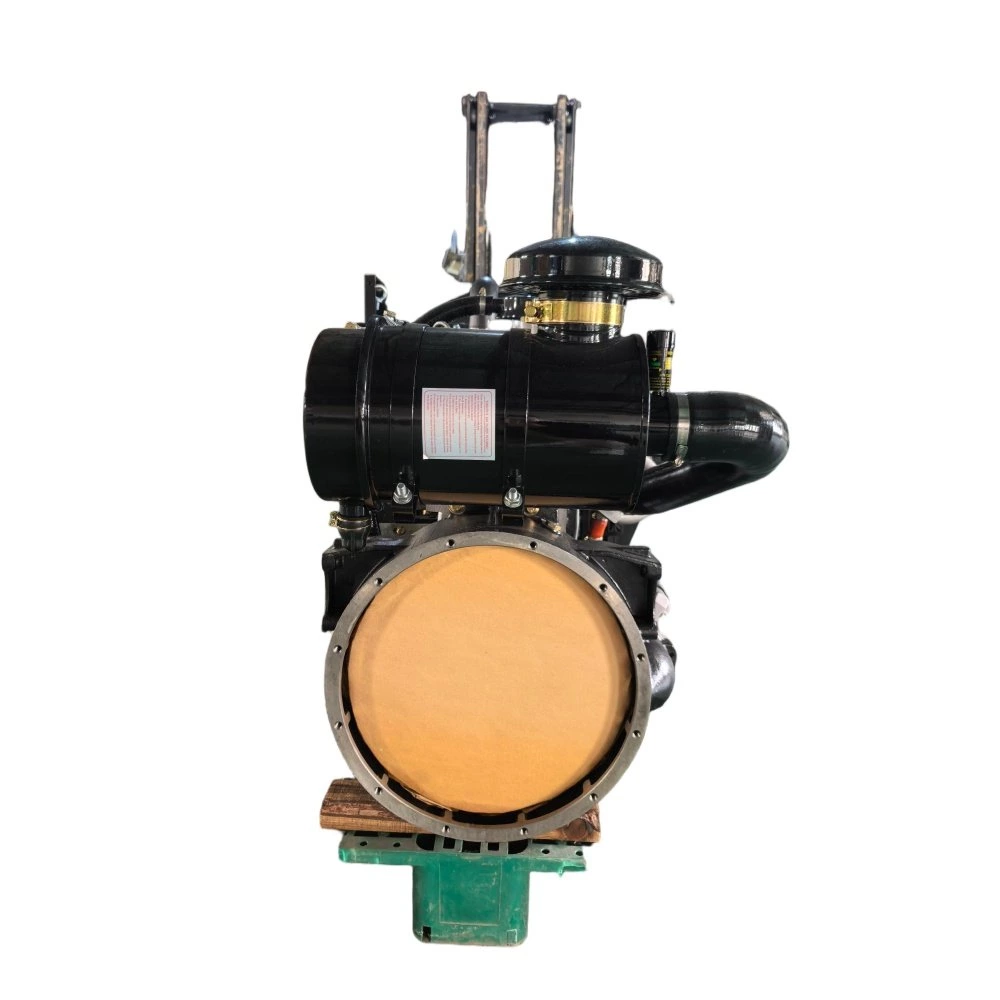

• Standard SAE flywheel housing and installation dimensions, easy to couple with alternators and water pump gearboxes.
• Perfect power solution for generator overhaul and pump unit power replacement.
• Global Perkins service network and complete spare parts supply system.

Technical Specifications
