Mitsubishi Fuso 6D24 Complete Engine

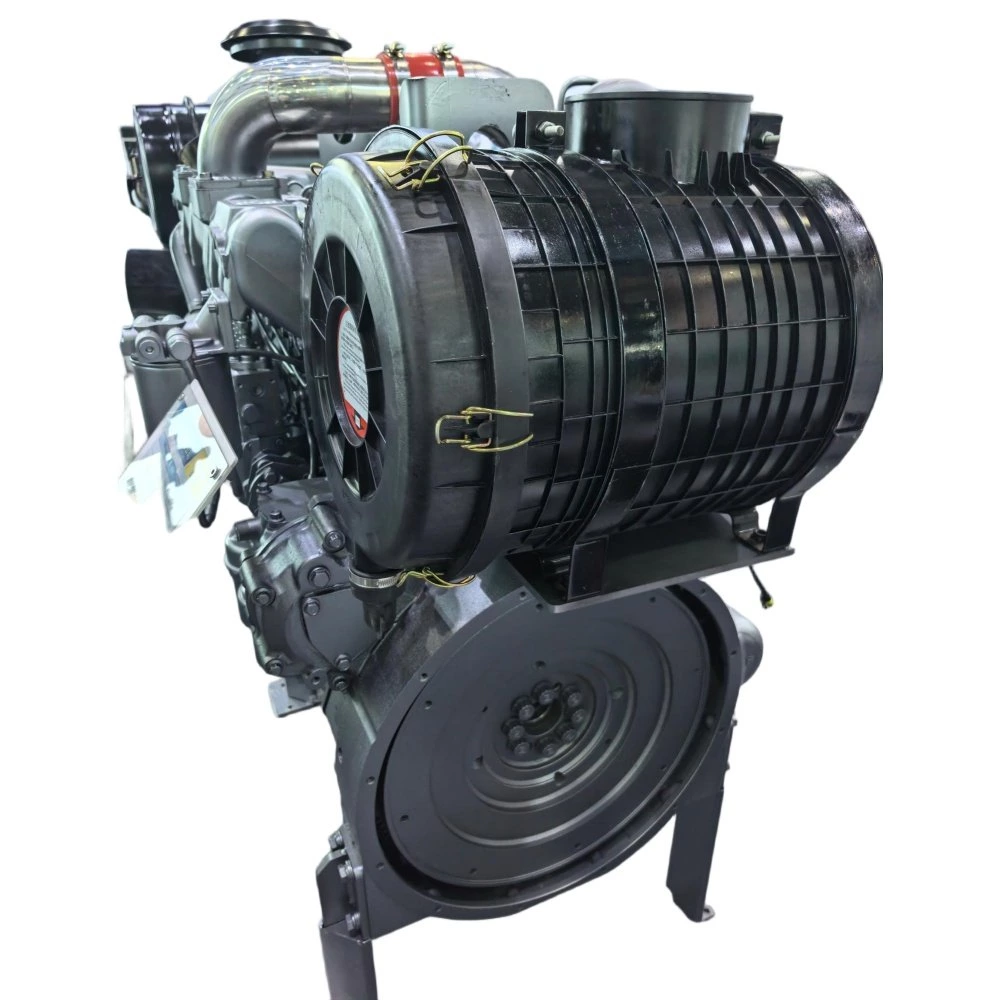

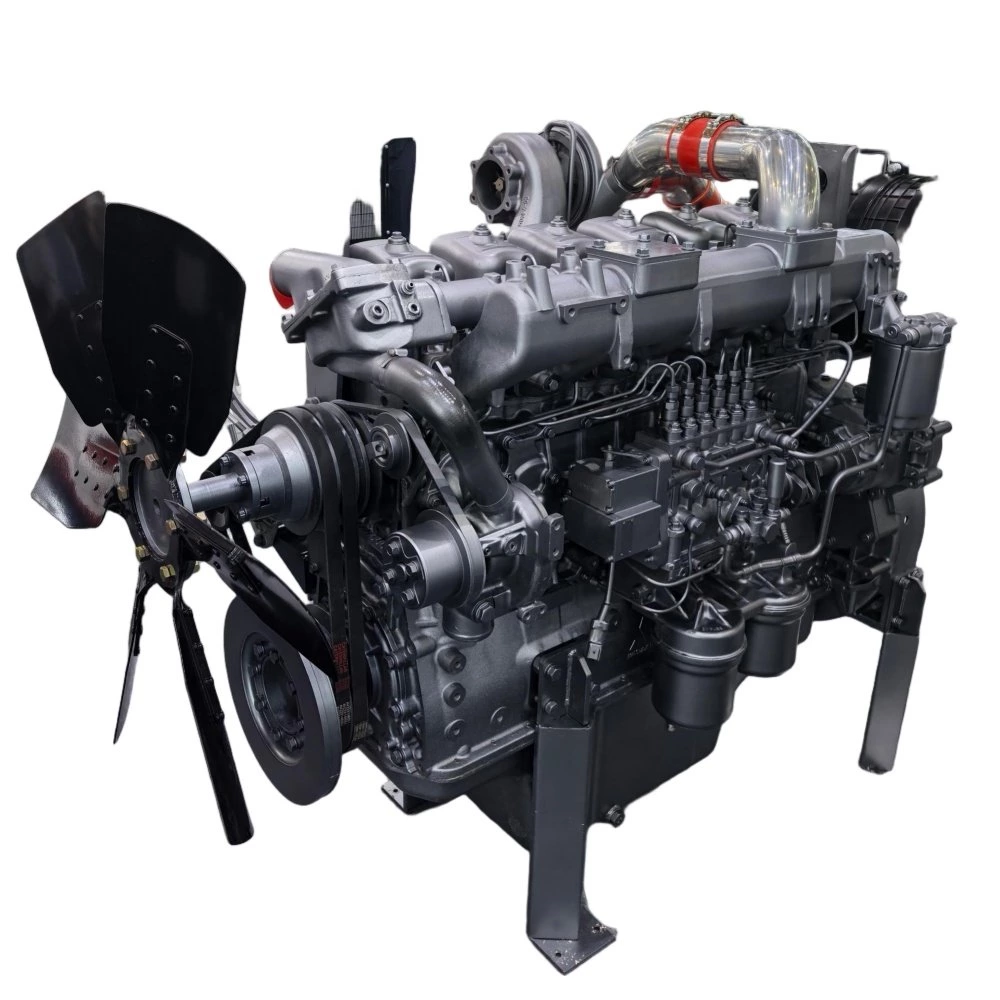

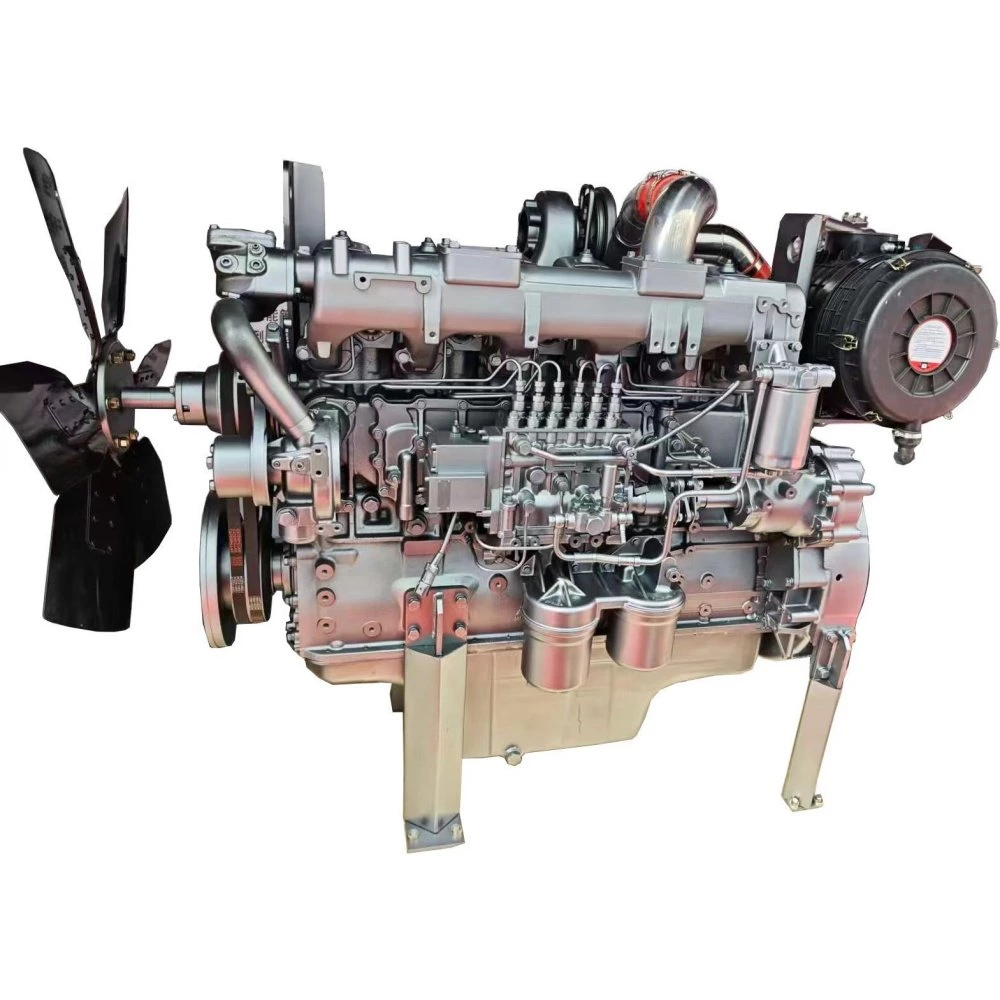

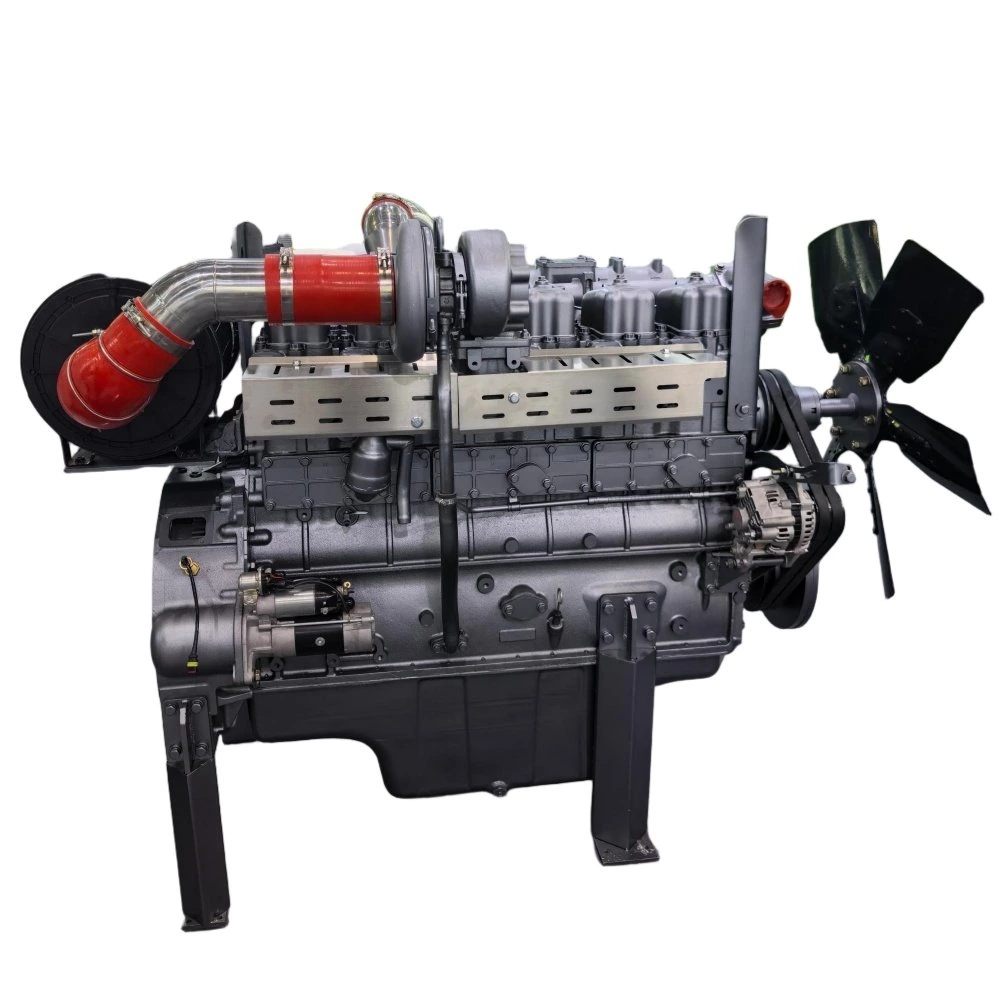

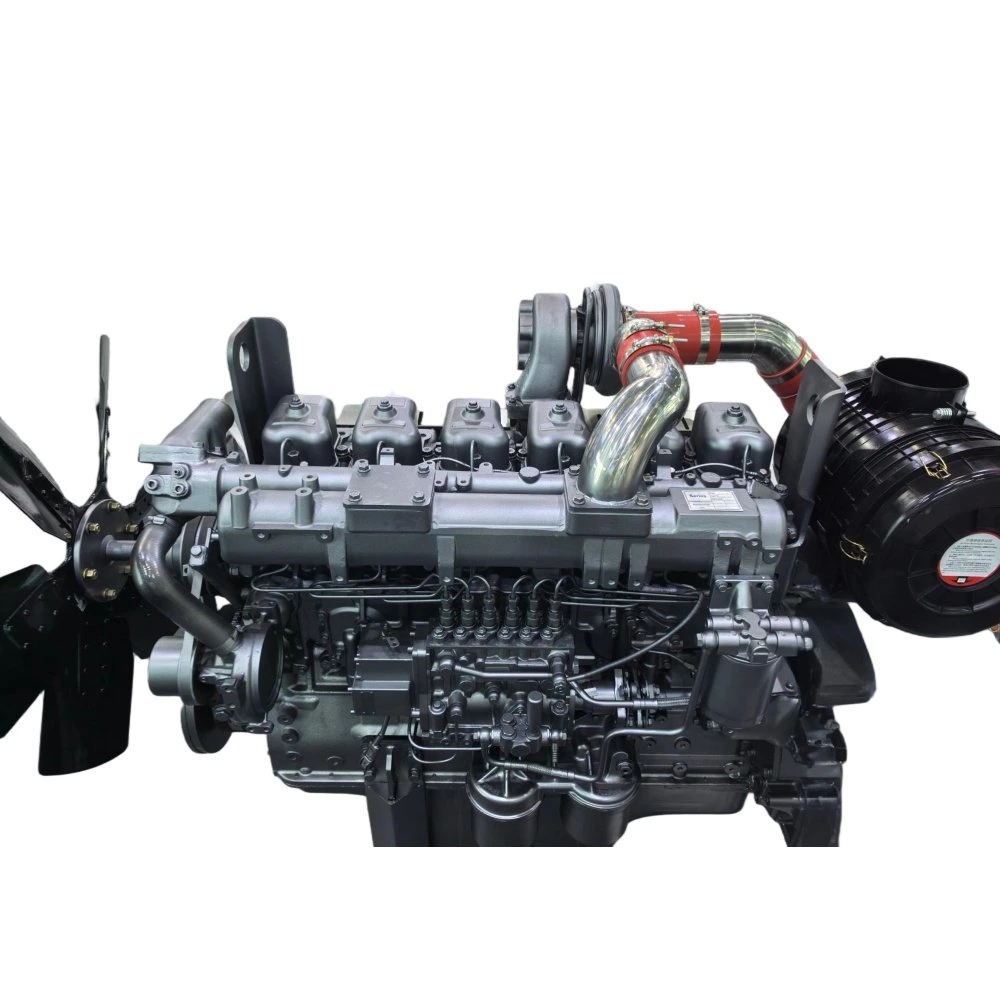

Name: Mitsubishi Fuso 6D24 Complete Engine
Brand: Komotashi
SKU: 00109
Rating: 4.8 (1 reviews)

Demo Mitsubishi Fuso 6D24 Complete Engine

✓ 11.945L Inline Six Mechanical Direct Injection Diesel Engine
✓ Naturally Aspirated / Turbocharged & Intercooled Versions
✓ Heavy-duty Truck, Coach, Engineering Machinery & Generator Power Unit

Classic Mitsubishi Fuso heavy-duty inline six-cylinder diesel engine. Rigid cast iron structure, mechanical inline fuel injection pump design, outstanding low-speed torque and strong environmental adaptability. Less electronic components, easy field maintenance, widely used for heavy trucks, large passenger buses, construction machinery overhaul and global replacement engine projects.

Overview

Product Details

Mitsubishi Fuso 6D24 is an inline six-cylinder, water-cooled four-stroke direct injection diesel engine. Displacement 11.945L, bore × stroke:130 mm × 150 mm. Multiple variants available: naturally aspirated 6D24, turbocharged 6D24-T1, turbo intercooled 6D24-T2. Equipped with mechanical inline injection pump, mainly meets Euro II emission standard.

High-rigidity cast iron cylinder block and cylinder head, long-stroke design brings powerful low & medium speed pulling force. Mechanical fuel system can adapt to inferior diesel fuel, stable operation under high temperature, dusty and complex road conditions. Standard original installation dimensions support direct replacement without large modification. Supply options: complete engine assembly, long block bare engine. Each engine undergoes bench hot test before delivery.

Matching Equipment List

Mitsubishi Fuso Super Great, FV517 heavy trucks, mixers, dump trucks

Large intercity passenger buses

Kobelco, Sumitomo large excavators

Stationary industrial generator sets

Product Advantages

Powerful Low-speed Torque & Stable Output

Power range: 177–257 kW (240–350 PS) @2200 rpm; peak torque 834–1422 N·m @1400 rpm.
Excellent low-speed torque performance, great climbing and heavy-load traction capability.
Stable power output under frequent variable loads, suitable for long-distance transportation and mining operation.

Super Durability & Low Maintenance Cost

Mature mass-produced platform with decades of market verification.
Simple mechanical structure, no complicated electronic control system; easy on-site overhaul without professional diagnostic equipment.
Complete global spare parts supply chain, low maintenance expense and short downtime.

Multi-scenario Matching

Perfect interchangeability for Mitsubishi Fuso heavy commercial vehicles and matched large excavators.
Multiple configurations optional: naturally aspirated for medium load; turbo intercooled version for heavy-duty working conditions.
Widely applicable for vehicles, engineering machinery and generator sets.

Technical Specifications

Engine Model	Emission Standard	Rated Power / Speed	Peak Torque / Speed	Cylinders	Displacement (L)	Aspiration	Fuel System
Mitsubishi Fuso 6D24 Complete Engine	Euro II	177–257 kW (240–350 PS) @2200 rpm	834–1422 N·m @1400 rpm	Inline 6	11.945	NA / Turbocharged & Intercooled Optional	Mechanical Inline Pump Direct Injection
