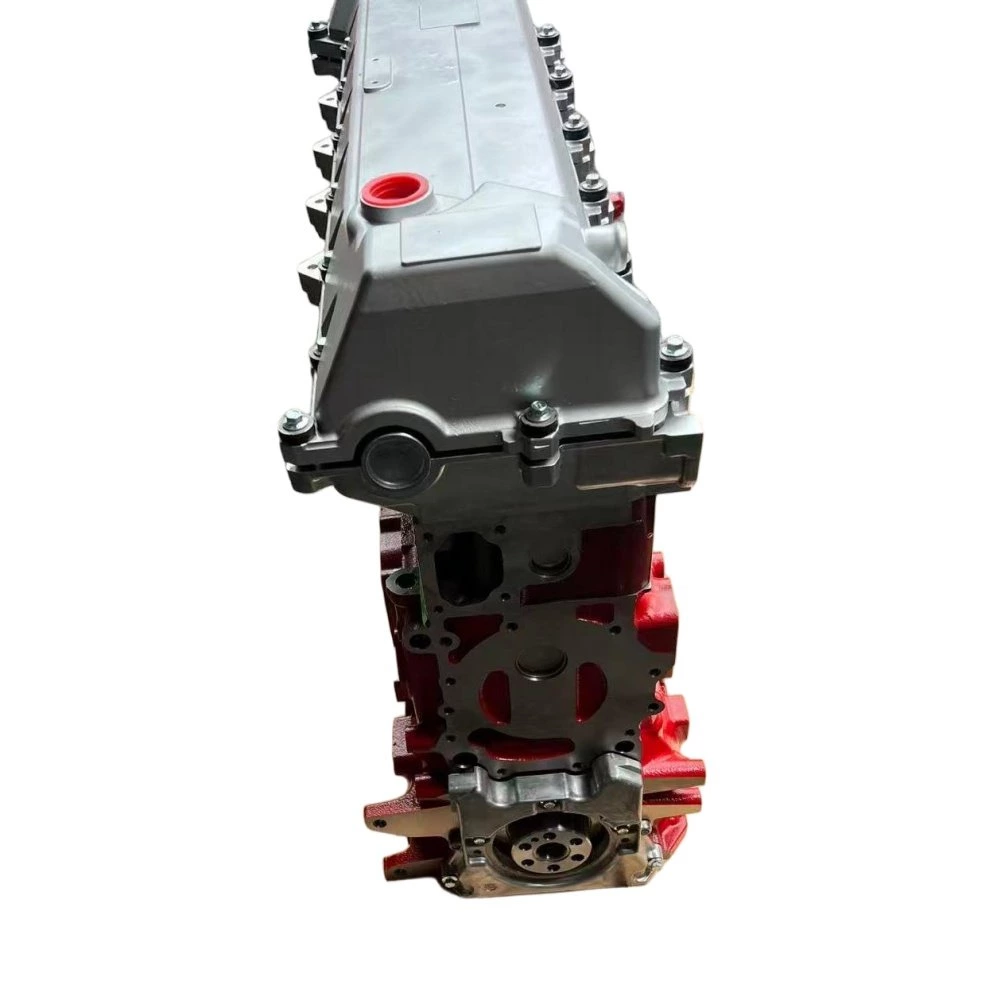

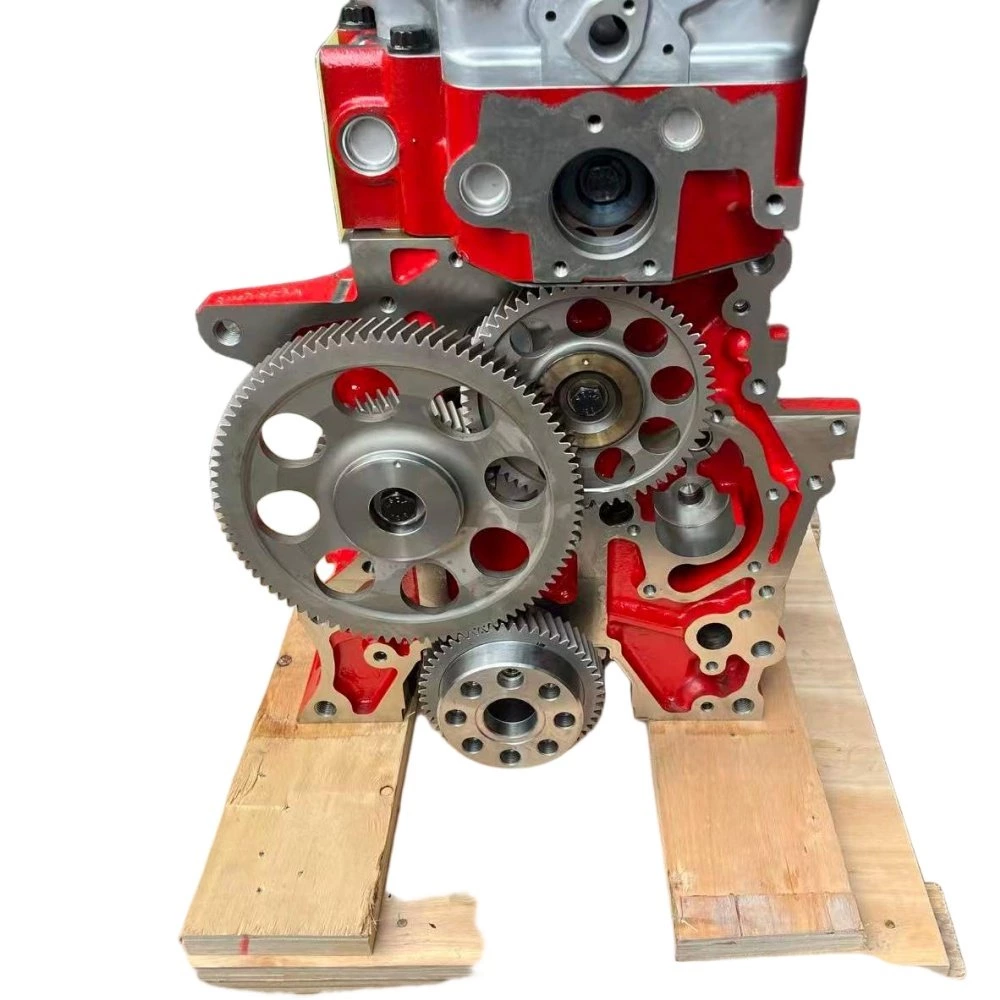

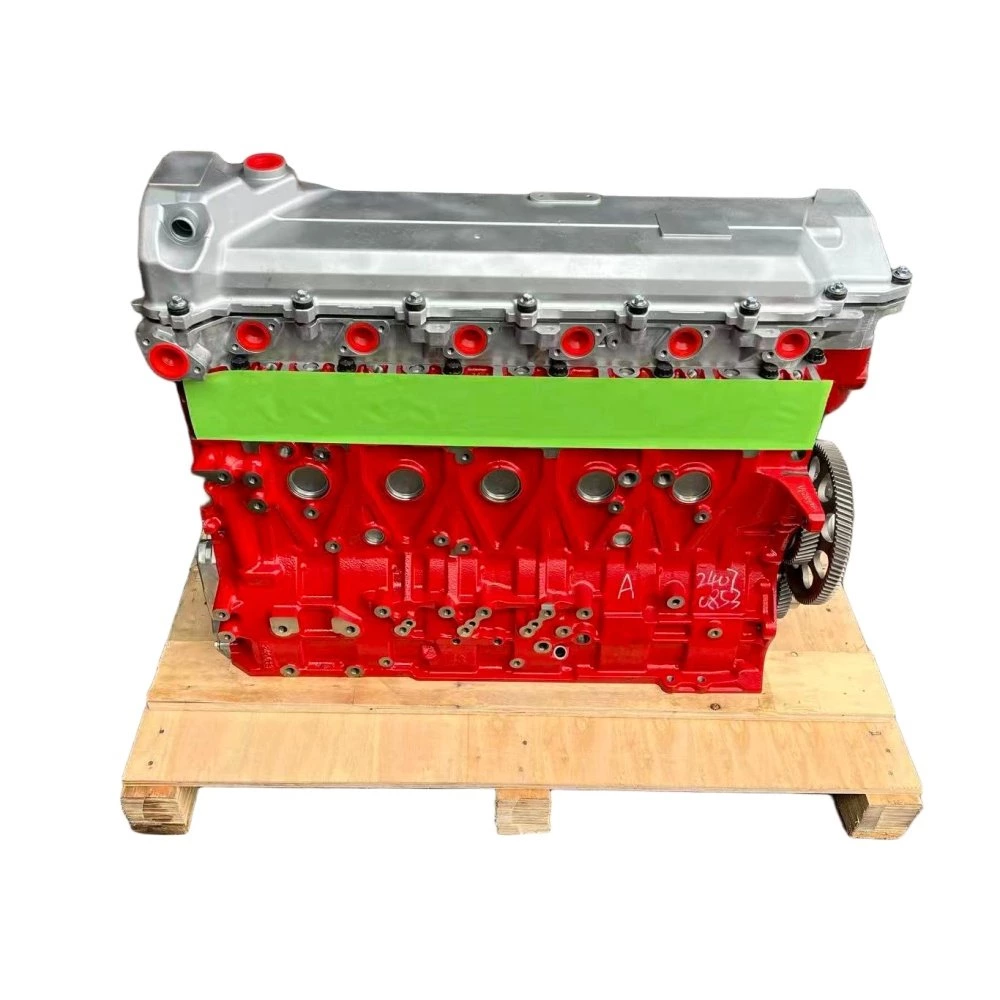

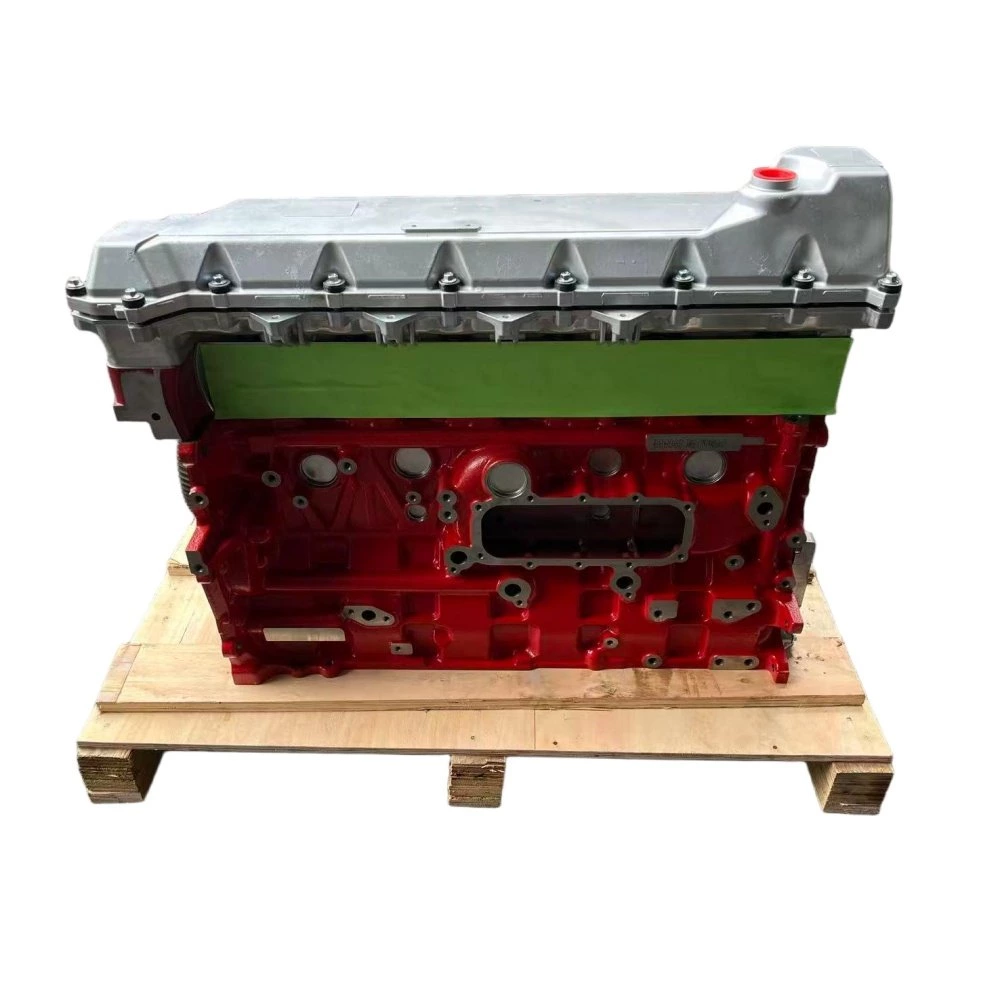

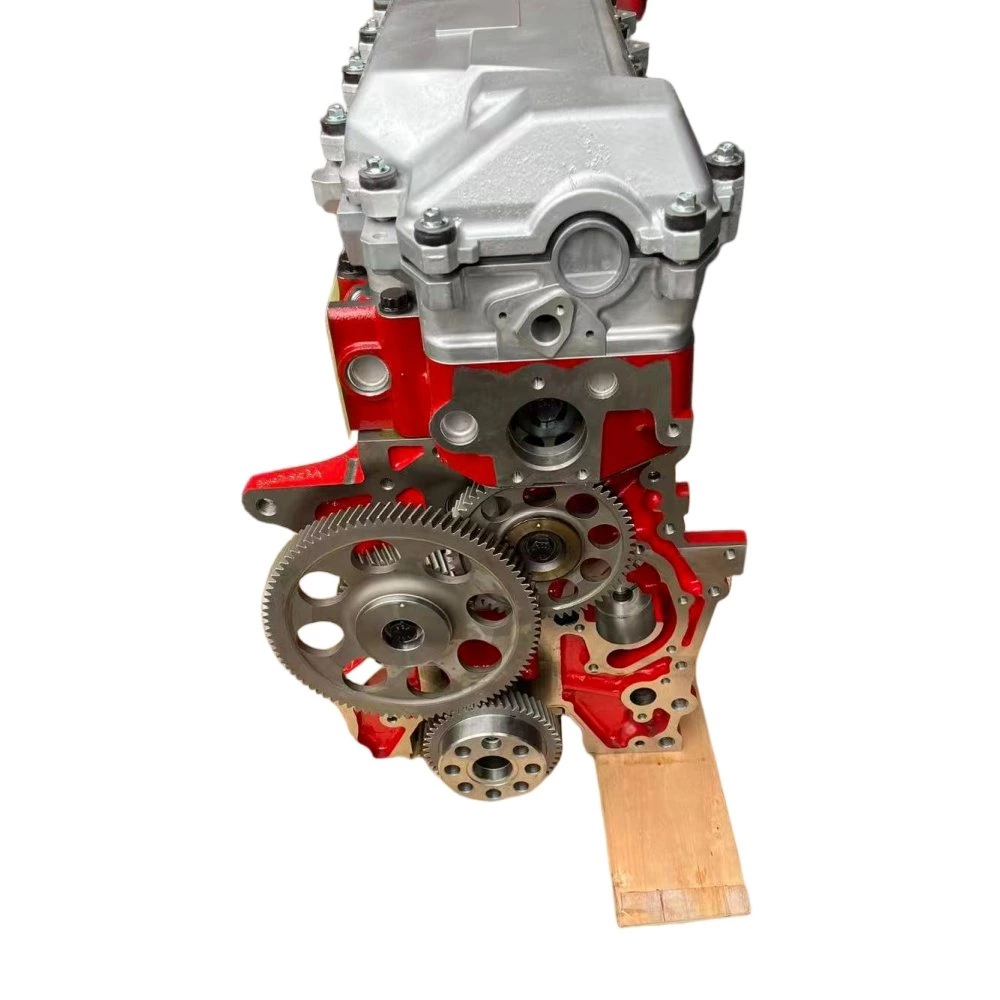

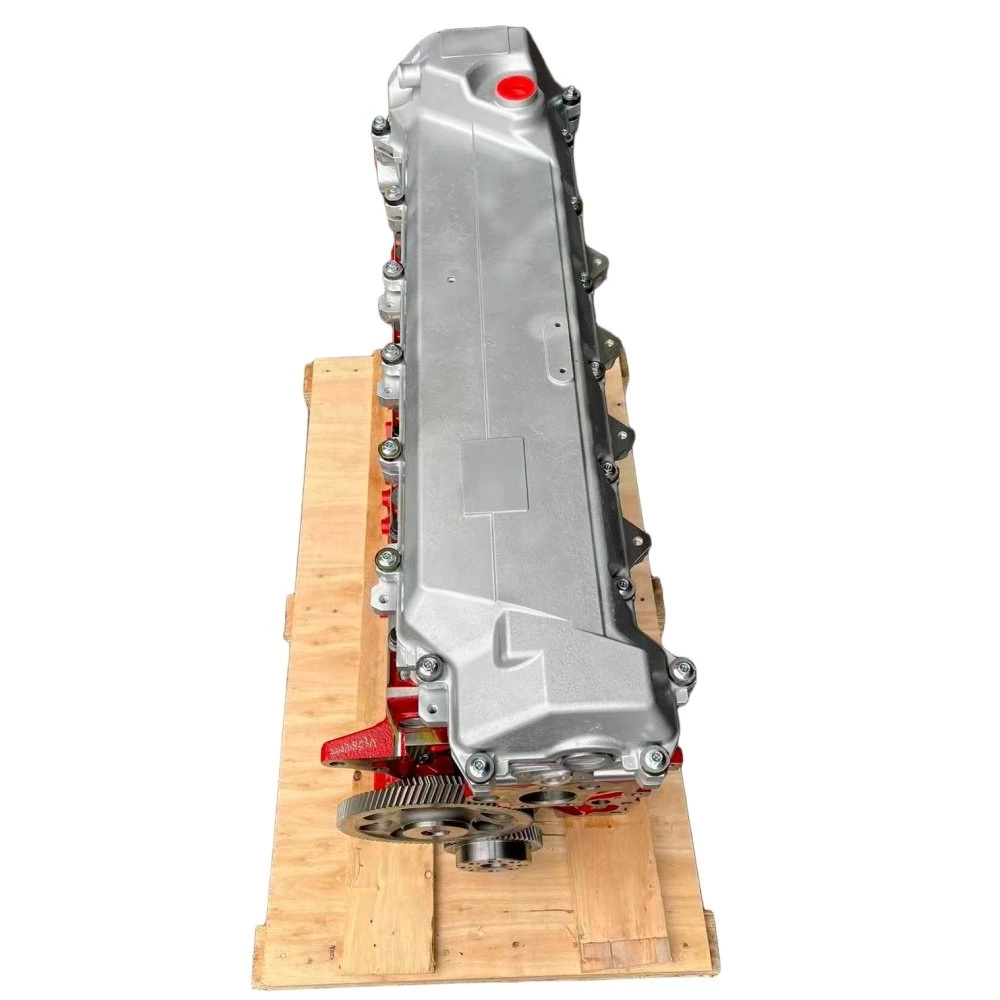

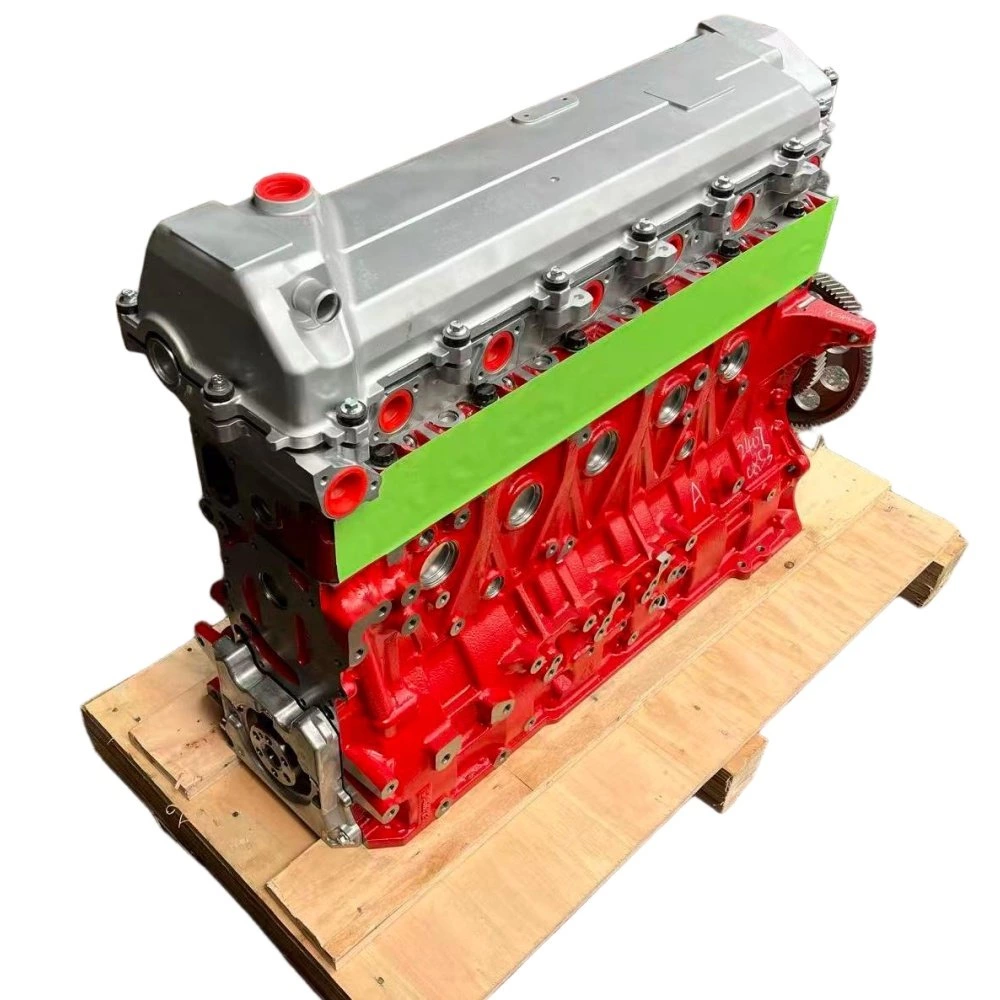

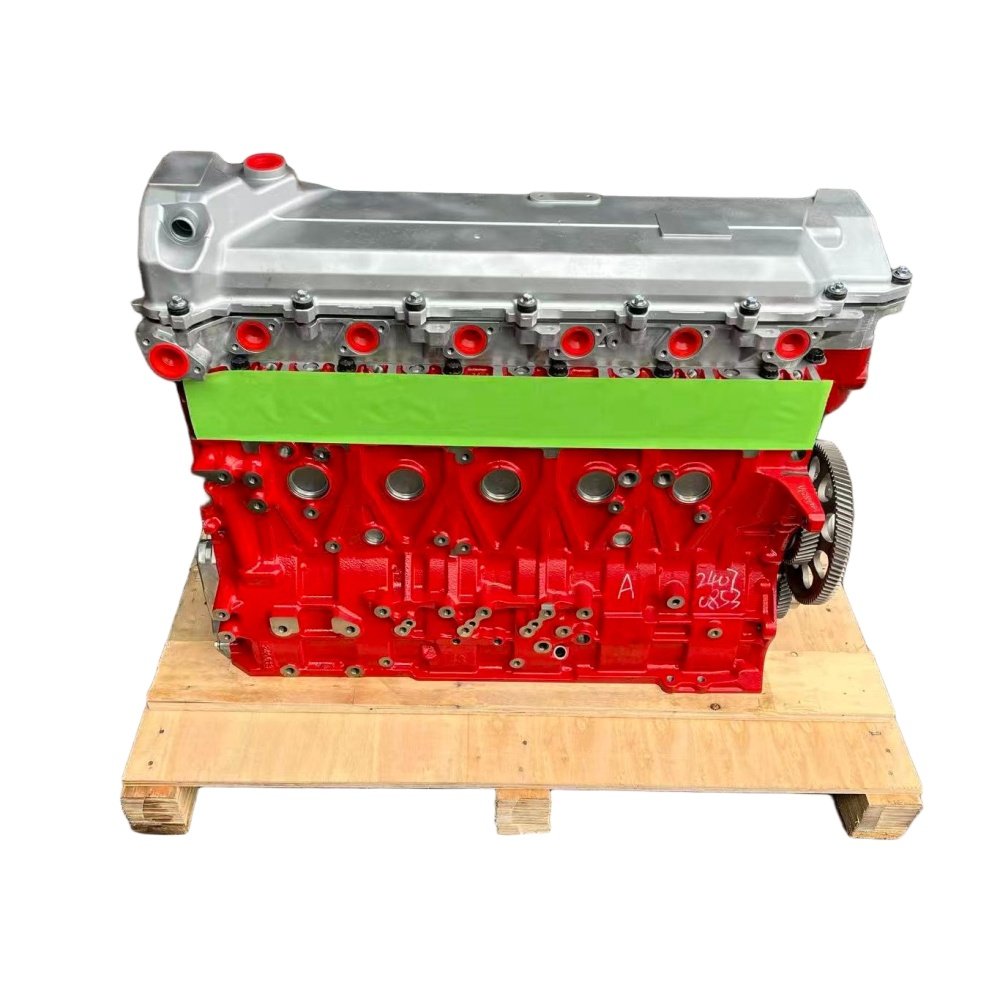

Hino J08E Long Block Base Engine

The Hino J08E is an inline six-cylinder, water-cooled four-stroke turbocharged & aftercooled diesel base engine (Long Block). It adopts OHC 24-valve structure, DENSO high-pressure common rail direct injection system. Widely fitted on Hino 500 series medium trucks, city buses, mixer trucks and special engineering vehicles.

Equipped with dry cylinder liner, high-strength closed deck cylinder block, excellent long-term heavy-load durability. Multiple calibration versions support Euro III/Euro IV/Euro V emission standards, optional matching with EGR, SCR and DPR after-treatment system. This base engine (Long Block) is the core bare assembly without external attachments, convenient for customers to assemble original accessories according to vehicle configuration. It features stable operation under long-distance transportation, frequent start-stop and continuous heavy-load working conditions.

Product Advantages

Powerful & Stable Dynamic Performance

• Power range covers 176-224 kW, wide flat torque curve, strong climbing ability for loaded trucks and buses.
• DENSO common rail fuel system achieves precise fuel injection, balancing power output and fuel economy.
• Complete electronic diagnosis function, convenient for daily vehicle inspection and maintenance management.

Super High Durability & Low Failure Rate

• Classic J08 platform, proven million-kilometer reliable record in global market.
• Dry cylinder liner design, easy overhaul and lower maintenance cost in later period.
• Optimized cooling and lubrication structure, effectively avoid high temperature and oil burning under continuous working.

Strong Matching Versatility

• Standard installation interfaces compatible with multiple Hino truck and bus chassis.
• Multiple power calibration versions optional to meet different emission regulation requirements.
• Good adaptability to various diesel fuels, suitable for Asia, Africa, Latin America and other overseas markets.

Technical Specifications
