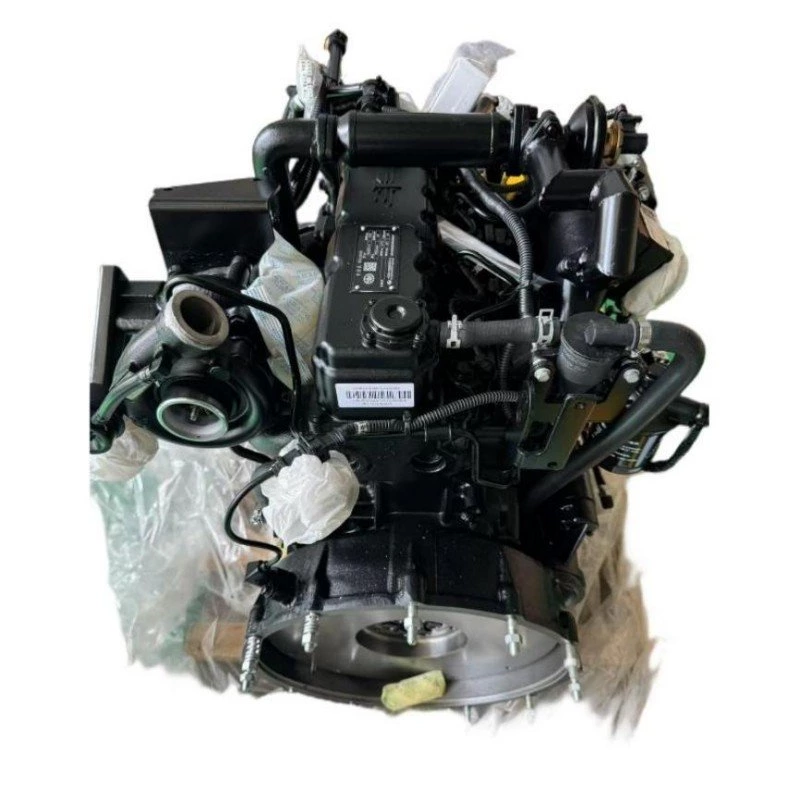

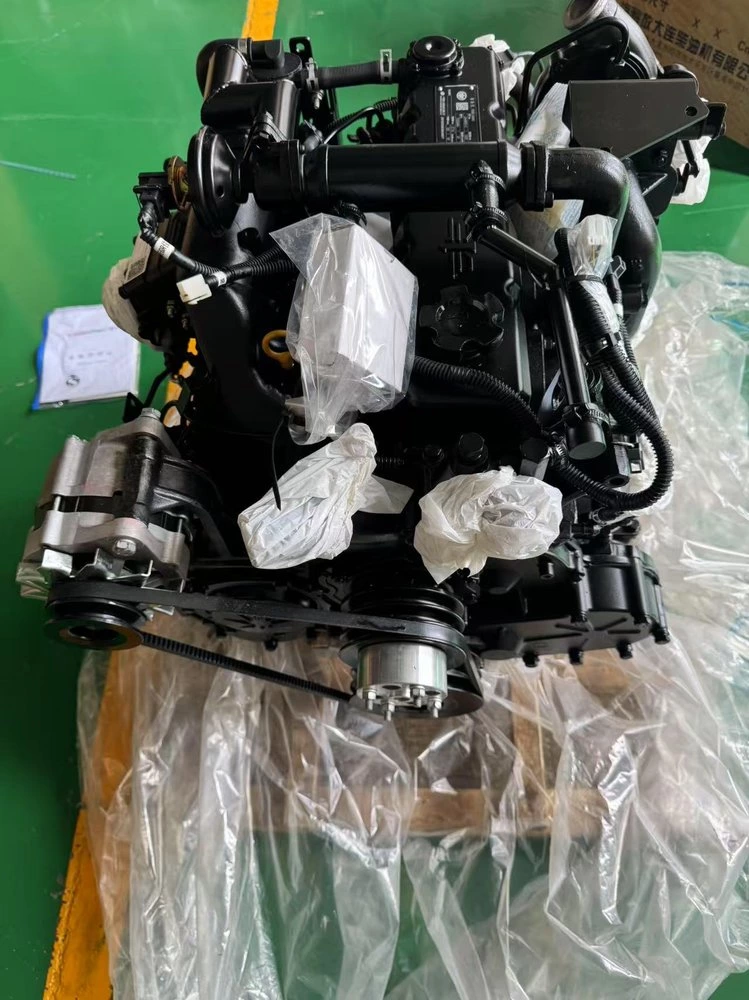

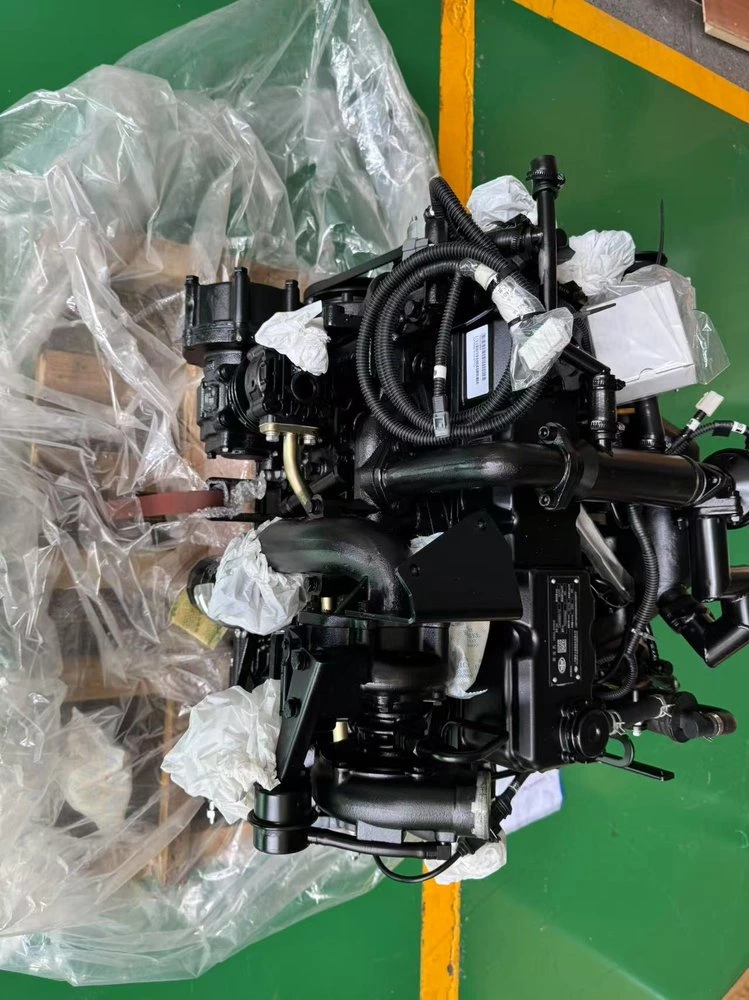

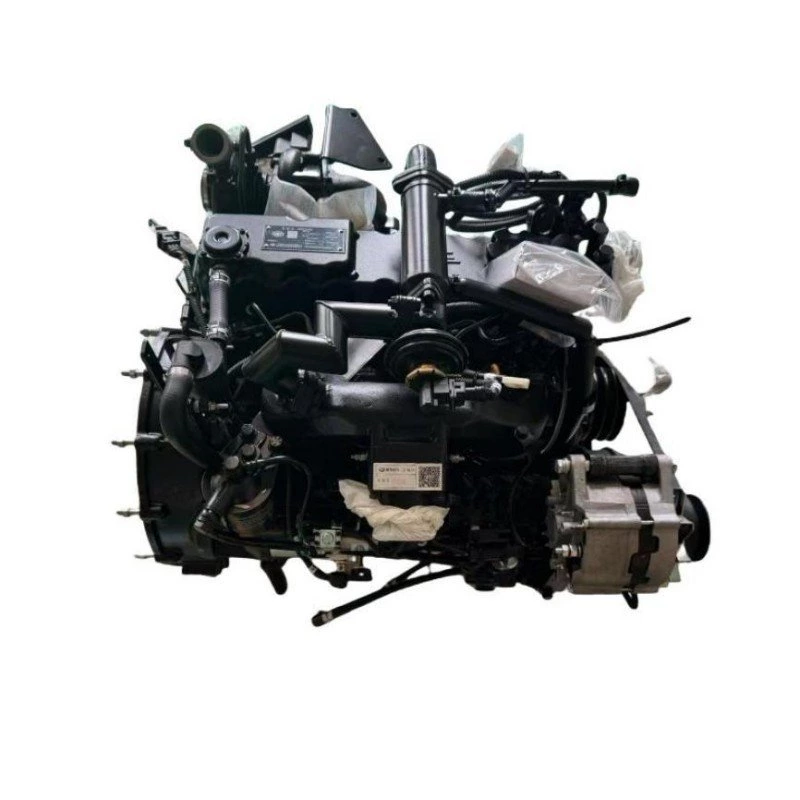

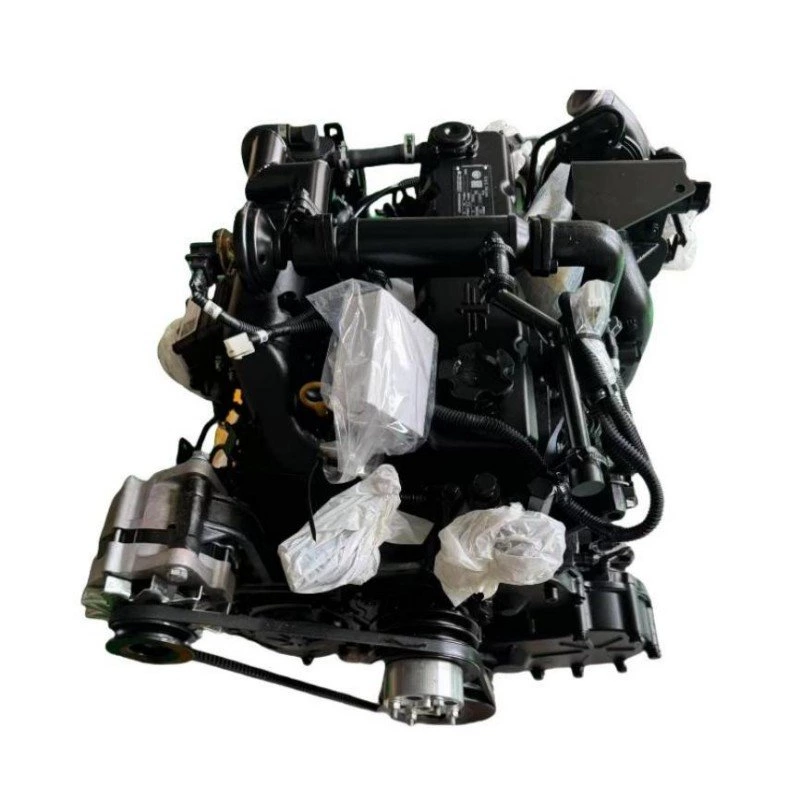

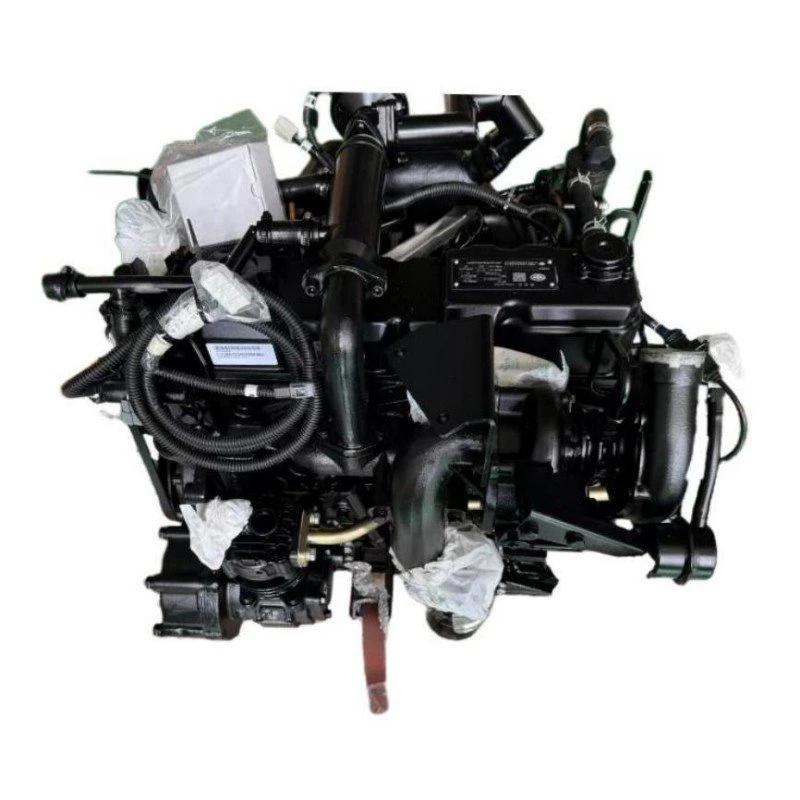

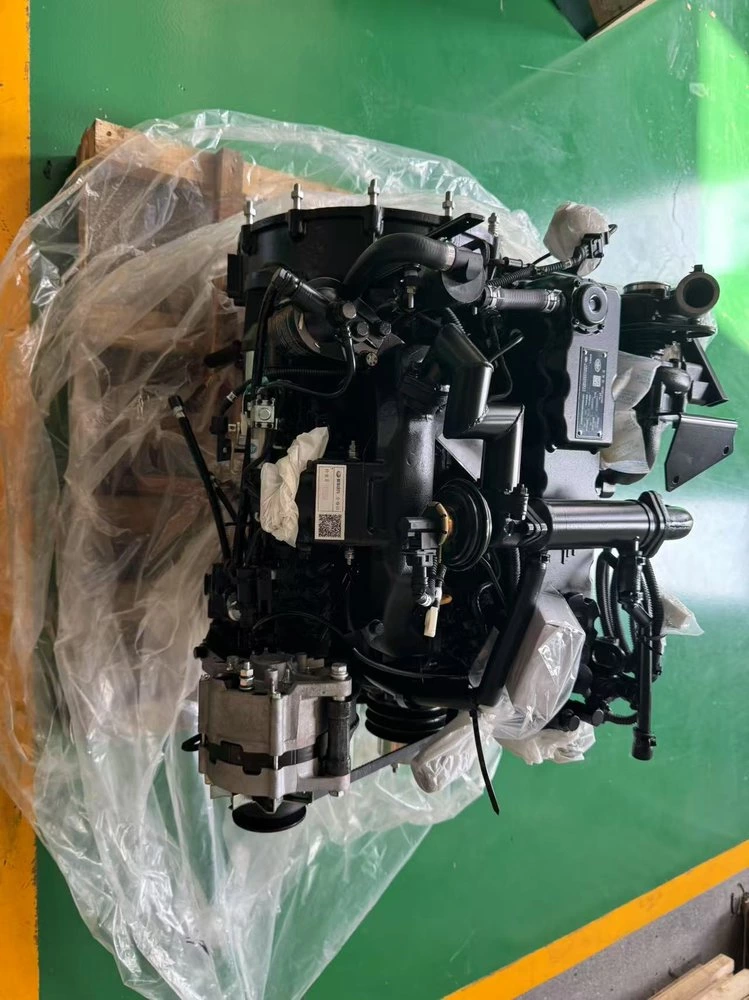

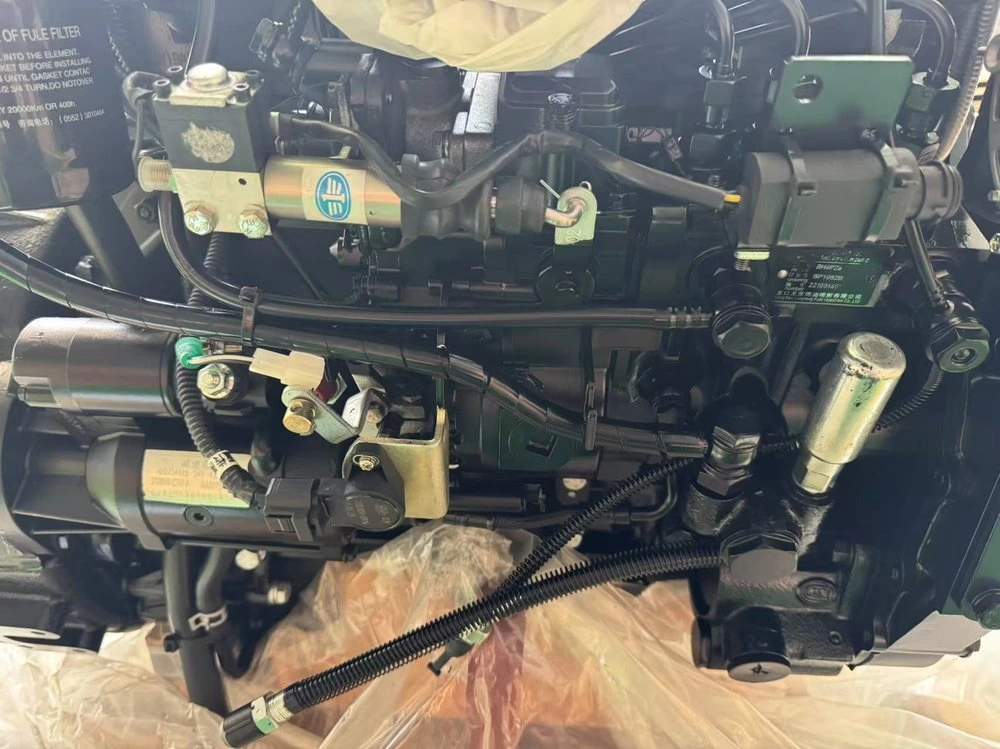

FAW Dachai CA498E3-12 Complete Engine

The FAW Dachai CA498E3-12 is an inline four-cylinder, water-cooled four-stroke turbocharged & aftercooled diesel engine. It adopts electronic controlled unit pump fuel injection system. Widely matched for 4.2m light trucks, small wheel loaders, water pumps and general industrial machinery.

High-strength cast iron cylinder block ensures long service life. Standardized installation interfaces and optional PTO connections support driving hydraulic assemblies. Optimized combustion meets Euro III / National III emission requirements without complicated post-processing devices. The engine features good fuel adaptability and can continuously operate under medium-load and dusty working conditions.

Product Advantages

Balanced Power Performance

• Rated power 90 kW @ 3200 rpm, maximum torque 320 N·m @ 2100 rpm, sufficient low-speed torque for frequent start-stop transport operation.
• Electronic fuel injection achieves precise fuel supply, well balanced between power output and fuel consumption.
• Complete fault diagnosis function supports routine inspection and equipment management.

Low Operation & Maintenance Cost

• Mature mass-produced platform, abundant spare parts globally with low procurement cost.
• Simple structure, convenient daily maintenance and on-site overhaul.
• Stable mechanical reliability, lower failure frequency for medium-duty continuous operation.

Wide Compatibility

• Compact overall dimension, easy to install on light commercial vehicles and small engineering equipment.
• Optimized vibration and noise control, suitable for long-distance transportation.
• Flexible configuration options for cooling system, flywheel housing and auxiliary drives to meet multiple equipment requirements.

Technical Specifications
